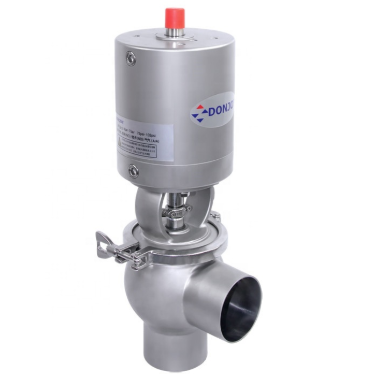

DONJOY hot selling Double stop pneumatic diverter valve

Name: DONJOY hot selling Double stop pneumatic diverter valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY hot selling Double stop pneumatic diverter valve

FOB Price: USD 200.00-1200.00 / piece
Min order:1 piece
Accept Min order: Yes
Supply Ability:1000 piece / Month
Country of Origin: Ningbo

Product Description

Place of Origin: CN; ZHE
Power: Pneumatic
Temperature of Media
Medium Temperature
Media: Water
Structure: Regulating
Brand Name: DONJOY
Port Size:DN25-DN100 or 1"-4"

DONJOY HOT SAEL Double stop pneumatic diverter valve

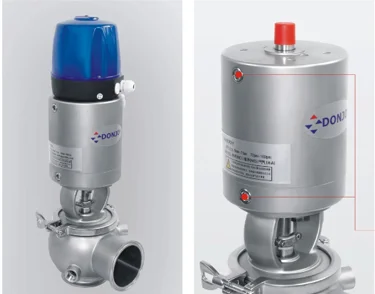

Product structure

Double stop pneumatic divert seat valve

Technical features:

Adjust regulator can reduce actuator operation moving speed, preventing plug from shocking with valve body

Technical Parameters

Product Name:	Double hot selling Double stop pneumatic diverter valve
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	Thread, Weld, Clamp
Availably standard:	DIN,SMS,RJT,3A
Operated:	Manual, Pneumatic, C-Top
Certificate:	FDA,CE

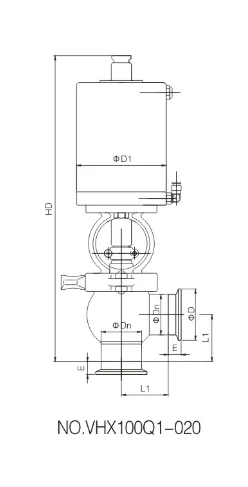

Dimensions

DIN Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
DN25	476	433	314	28	50.5	50	67	88	113	12.7	6
DN32				34		55				12.7	6
DN40				40		60				12.7	6
DN50	537	494	378	52	64	70	76	113	132	12.7	8
DN65	583	540	406	70	91	99	105	132	180	12.7	15
DN80	583	540	406	85	106	99	105	132	180	12.7	15
DN100	662	619	489	104	119	114	146	180		15.8	17

INCH Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
1”	476	433	314	28	50.5	50	67	88	113	12.7	6
1.25’				34		55				12.7	6
1.5”				40		60				12.7	6
2”	537	494	378	52	64	70	76	113	132	12.7	8
2.5”	583	540	406	70	91	99	105	132	180	12.7	15
3”	583	540	406	85	106	99	105	132	180	12.7	15
4”	662	619	489	104	119	114	146	180		15.8	17

Lưu ý

Sản phẩm DONJOY hot selling Double stop pneumatic diverter valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
