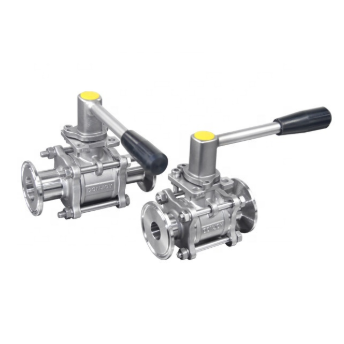

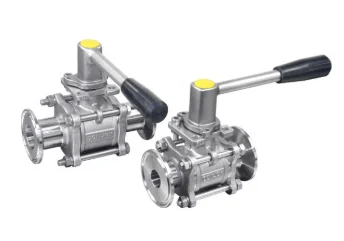

Donjoy manual handle Stainless steel non retention 3 pieces ball valves

Name: Donjoy manual handle Stainless steel non retention 3 pieces ball valves
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Donjoy manual handle Stainless steel non retention 3 pieces ball valves

· Model NO.: VQW

· FOB Price: USD 30.00-800.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:1000 piece / Month

Country of Origin: ningbo

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Manual

· Structure: Ball

· Media: food, beverage, fruit juice, wine, biopharmaceutical

· Brand Name: DONJOY

· Port Size:DN25-100 or 1"-4"

· Application: Fluid control

· Model Number: VQW

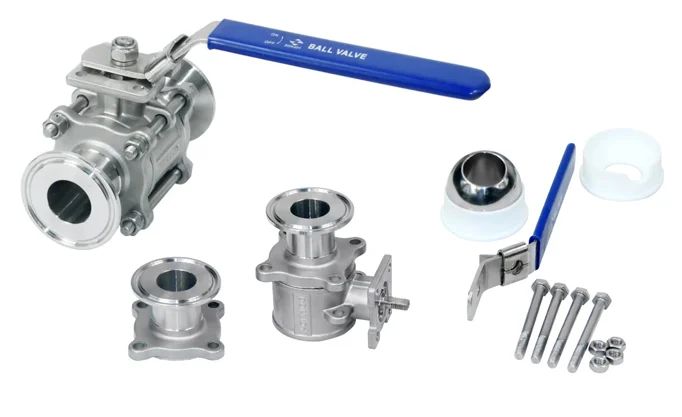

Product structure

donjoy-manual-2

Technical Parameters

Product Name:	Donjoy manual handle Stainless steel non retention 3 pieces ball valves
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE/EPDM
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN100 or 1/2"- 4"
Availably connection:	Weld, Clamp, thread, flange
Availably standard:	DIN,SMS,3A
Operated:	Manual, Pneumatic, Electric
Certificate:	FDA,CE

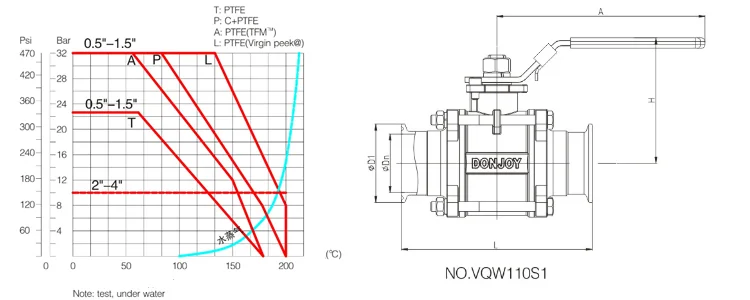

Dimensions

Pressure And Temperature Curve

INCH

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3	AA
0.5”	F04	9.7	12.7	25.4	89	75	163	175.5	158	220	165	226	86	6
0.75”	F04	16.1	19.1	25.4	89	75	163	175.5	158	220	165	226	86
1”	F04	22.4	25.4	50.5	114	78	163	179	158	223	165	230	86
1.25”	F04	28.8	31.8	50.5	117	83	163	198	190	228	165	235	86
1.5”	F05	35.1	38.1	50.5	142	94	164	206	190	236	165	243	86	10
2”	F05	47.8	50.8	64	156	99	164	237	207	255	165	315	113	10
2.5”	F07	59.5	63.5	77.5	197	116	236	257	207	272	212	332	113	12
3”	F07	72.2	76.2	91	221	127	236	274	213	314	212	380	133
3.5”	F07	85	89	106	229	133	236	391	259	354	259	386	133
4”	F10	97.6	101.6	119	241	150	236	308	259	371	259	423	166

DIN

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3	AA
DN10	F04	9	12	25.4	89	75	163	175.5	158	220	165	226	86	6
DN15	F04	15	18	25.4	89	75	163	175.5	158	220	165	226	86
DN20	F04	19	22	50.5	114	78	163	179	158	223	165	230	86
DN25	F04	25	28	50.5	117	83	163	198	190	228	165	235	86
DN32	F05	31	34	50.5	142	94	164	206	190	236	165	243	86	10
DN40	F05	37	40	64	156	99	164	237	207	255	165	315	113	10
DN50	F07	49	52	77.5	197	116	236	257	207	272	212	332	113	12
DN65	F07	66	70	91	221	127	236	274	213	314	212	380	133
DN80	F07	81	85	106	229	133	236	391	259	354	259	386	133
DN100	F10	100	101	119	241	150	236	308	259	371	259	423	166

Lưu ý

Sản phẩm Donjoy manual handle Stainless steel non retention 3 pieces ball valves được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
