DONJOY Manual Non-retention ball valve

Name: DONJOY Manual Non-retention ball valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Manual Non-retention ball valve

· Model NO.: QF-2

· FOB Price: USD 28.00-32.00 / pieces

· Min order:2 pieces

· Accept Min order: Yes

· Supply Ability:5000 pieces / Month

Country of Origin: Ningbo/Shanghai

Product Description

· Place of Origin: CN; ZHE

· Power: Manual

· Structure: Ball

· Media: Water

· Temperature of Media: Normal Temperature

· Brand Name: DONJOY

· Model Number:QF-2

· Port Size:DN10-DN100

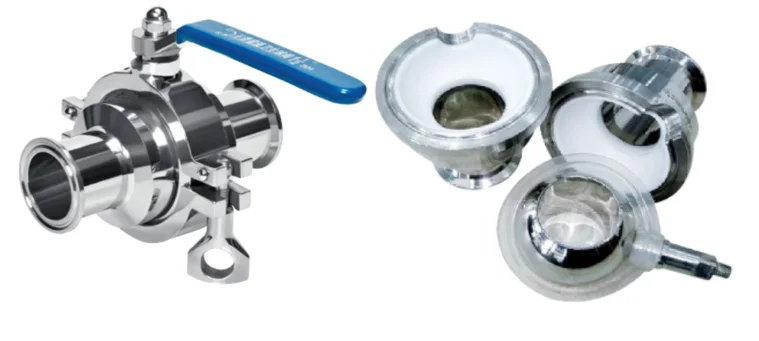

Product structure

donjoy-manual-2

Technical Parameters

Product Name:	DONJOY Manual Non-retention ball valve
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN15-DN65 or 1/2"- 21/2"
Availably connection:	Weld, Clamp
Availably standard:	DIN,SMS,3A
Operated:	Manual
Certificate:	FDA,CE ,3A

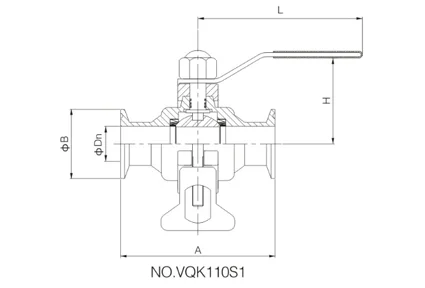

Dimensions

SIZE	A	L	H	B	Dn
DN15	90	105	65	34.0	15
DN20	100	105	65	34.0	19
DN25	110	105	70	50.5	25
DN32	120	130	80	50.5	31
DN40	140	150	80	50.5	37
DN50	164	160	85	64.0	49
DN65	180	180	110	91.0	66

SIZE	A	L	H	B	Dn
19	90	105	65	25.4	16.0
25	100	105	65	50.5	22.4
32	110	105	70	50.5	28.8
38	120	130	80	50.5	35.1
51	140	150	80	64.0	47.8
57	164	160	85	77.5	53.0
63	180	180	110	77.5	59.5

Lưu ý

Sản phẩm DONJOY Manual Non-retention ball valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
