DONJOY Multi port zero dead diaphragm valve for biopharmaceutical products Multi-port valves

Name: DONJOY Multi port zero dead diaphragm valve for biopharmaceutical products Multi-port valves
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

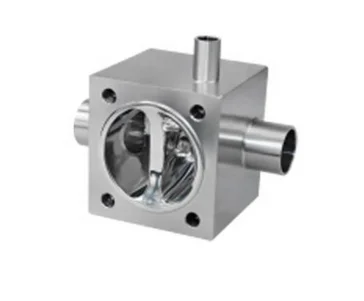

donjoy-multi-port-zero-dead-diaphragm-valve-1

DONJOY Multi port zero dead diaphragm valve for biopharmaceutical products Multi-port valves

· Model NO.: M-44C

· FOB Price: USD 714.00-784.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: Ningbo or shanghai

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Medium Temperature

· Power: Manual

· Media: Gas

· Structure: Diaphragm

· Brand Name: DONJOY

· Model Number:M-44C

· Port Size:1/2"-3"

DONJOY Multi port diaphragm valve for biopharmaceutical products

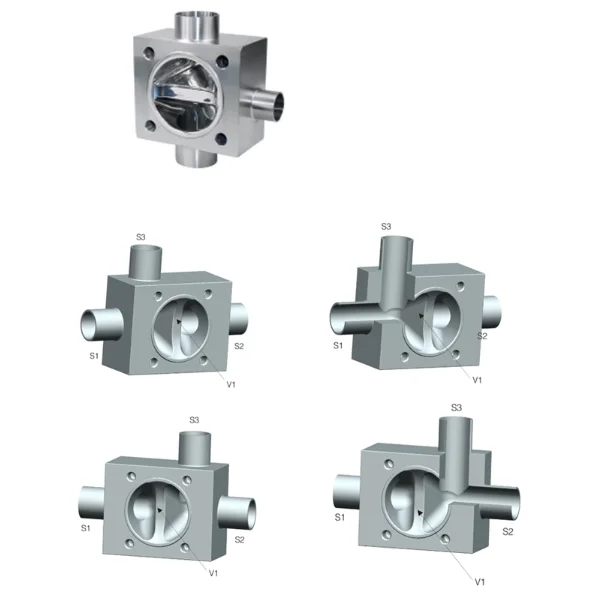

Product structure

donjoy-multi-port-zero-dead-diaphragm-valve-for-5

Technical Parameters

Availably size	1"-4", DN25-DN100
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	10Bar
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

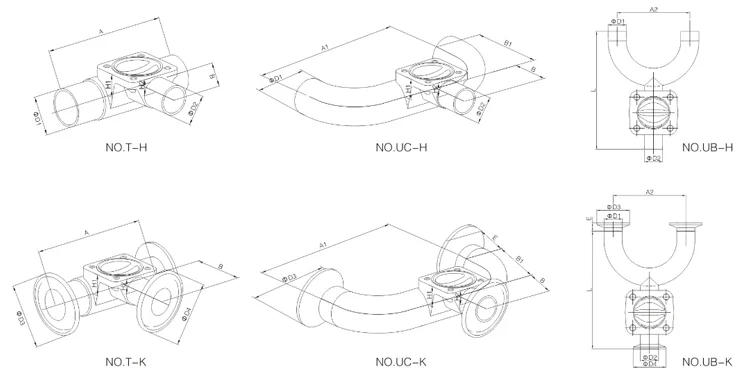

Dimensions

donjoy-multi-port-zero-dead-diaphragm-valve-for-6

ASME BPE/ASTM 269

SIZE	D1	D2	D3	D4	A	A1	A2	B	B1	H1	H2	L	E
1”-1/2”	25.4	12.7	50.5	25.4	100	176	76.2	59	68	24.5	9	142.9	12.7
1”-3/4”		19.1		25.4	100	176		59		24.5	13	154.3
1”-1”		25.4		50.5	124	200		85		29.8	17	188.3
1 ¼”-1/2”	31.8	12.7	50.5	25.4	100	195.5	95.4	61	78	26.5	9	155.7	12.7
1 ¼”-3/4”		19.1		25.4	100	195.5		61		26.5	13	167.1
1 ¼”-1”		25.4		50.5	124	219.5		85		32.8	17	201.1
1 ¼”-1 ¼”		31.8		50.5	124	219.5	95.4	85		32.8	20	222.6
1.5”-1/2”	38	12.7	50.5	25.4	100	214	114.3	64	87	29.5	9	168.3	12.7
1.5”-3/4”		19.1		25.4	100	214		64		29.5	13	179.7
1.5”-1”		25.4		50.5	124	238		89		35.8	17	213.7
1.5”-1 ¼”		31.8		50.5	150	266	114.3	109			20	235.2
1.5”- 1.5”		38.1		50.5	150	266	114.3	109			23	241.7
2”-1/2”	50.8	12.7	64	25.4	100	252.5	152.4	70	106	33.5	9	193.7	12.7
2”-3/4”		19		25.4	100	252.5		70		33.5	13	205.1
2”-1”		25.4		50.5	124	276.5		95		41.8	17	239.1
2”-1 ¼”		31.8		50.5	152	304.5	152.4	115		43.8	20	260.6
2”-1.5”		38.1		50.5			152.4	115		43.8	23	267.1
2”- 2”		50.8		64			152.4	123		43.3	29	289.6

DIN32676/DN11850-1/2

SIZE	D1	D2	D3	D4	A	A1	A2	B	B1	H1	H2	L	E
DN25-1/2”	28	12.7	50.5	25.4	100	200	100	59	80	24.5	9	166.1	21.5
DN25-3/4”		19		34							13	177.5
DN25- DN20		22		34							13	206.5
DN25- DN25		28		50.5	124	224		85		29.8	17	211.5
DN32-1/2”	34	12.7	50.5	25.4	100	210	110	61	85	26.5	9	174.1	21.5
DN32-3/4		16		25.4							13	185.5
DN32-DN20		22		34							13	214.5
DN32-DN25		28		50.5	124	234		85		32.8	17	219.5
DN32-32		34		50.5	124	234		85		32.8	20	241
DN40-1/2”	40	12.7	50.5	25.4	100	220	120	64	90	29.5	9	182.1	21.5
DN40-3/4”		19		25.4							13	193.5
DN40-DN20		22		34							13	222.5
DN40-DN25		28		50.5	124	244		89		35.8	17	227.5
DN40-DN32		34		50.5	152	272		109			20	249
DN40-DN40		40		50.5	152	272		109			23	255.5
DN50-1/2”	52	12.7	64	25.4	100	240	140	70	100	33.5	9	198.1	21.5
DN50-3/4”		19.		25.4							13	209.5
DN50-DN20		22		34							13	238.5
DN50-DN25		28		50.5	124	264		95		41.8	17	243.5
DN50-DN32		34		50.5	152	292		115		43.8	20	265
DN50-DN40		40		50.5	152	292		115		43.8	23	271.5
DN50-DN50		52		64	184	324		123		43.3	29	294

Lưu ý

Sản phẩm Donjoy high quality sanitary inox Multiport diaphragm membrance valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
