DONJOY PP PE filter element single core filter stainless steel water filter housing

Name: DONJOY PP PE filter element single core filter stainless steel water filter housing
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY PP PE filter element single core filter stainless steel water filter housing

FOB Price: USD 154.00-176.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:500 pieces / Month
Country of Origin: FOB Ningbo or ShanghaiTop of FormBottom o

Product Description

Condition: New
Place of Origin: CN;ZHE
Warranty:1 Year
After-sales Service Provided: No after-sales service
Brand Name: DONJOY
Dimension(L*W*H):Standard
Certification:3A,CE,ISO
Applicable Industries: Food & Beverage Factory
Voltage:380V

DONJOY PP PE filter element single core filter stainless steel water filter housing

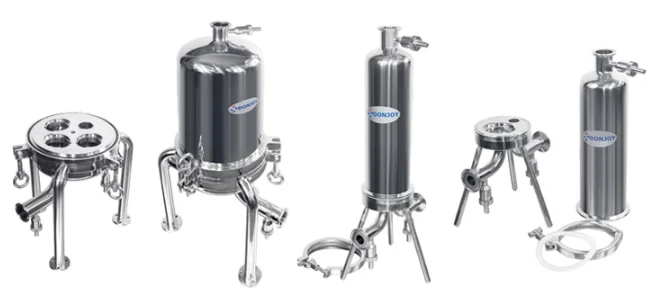

Product structure

Technical Parameters

Housing	316L/304
Gasket	EPDM according to FDA 177.2600
Inner polish	Ra<0.8μm
Outside polish	mirror polish
Sizes	DN25-DN150
Working temperature	-10℃-+120℃
Max working pressure	10bar
Connections	clamp, thread, weld

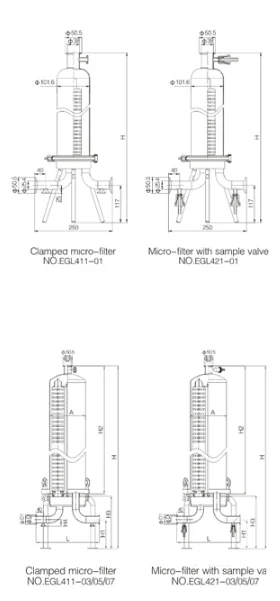

Dimensions

Single core filter

Size	H	Cartridge
5’	435	226(7#)
10’	560	226(7#)
20’	814	226(7#)
30’	1068	226(7#)

Three cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	350	685	160	380	293	35	38.1	50.5	204	226(222)
20’	350	935	160	630	293	35	38.1	50.5	204	226(222)
30’	350	1185	160	880	293	35	38.1	50.5	204	226(222)
40’	350	1435	160	1130	293	35	38.1	50.5	204	226(222)

Five cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	350	679	152	380	287	35	38.1	50.5	219	226(222)
20’	350	929	152	630	287	35	38.1	50.5	219	226(222)
30’	350	1179	152	880	287	35	38.1	50.5	219	226(222)
40’	350	1429	152	1130	287	35	38.1	50.5	219	226(222)

Seven cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	450	713	152	390	311	45	50.8	64	273	226(222)
20’	450	963	152	640	311	45	50.8	64	273	226(222)
30’	450	1213	152	890	311	45	50.8	64	273	226(222)
40’	450	1463	152	1140	311	45	50.8	64	273	226(222)

Lưu ý

Sản phẩm DONJOY PP PE filter element single core filter stainless steel water filter housing được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
