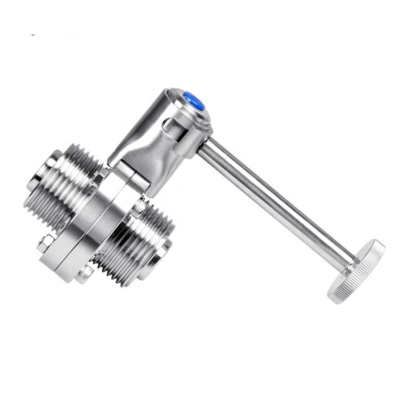

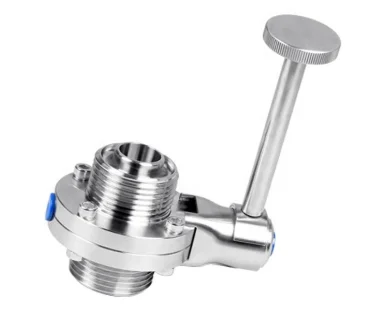

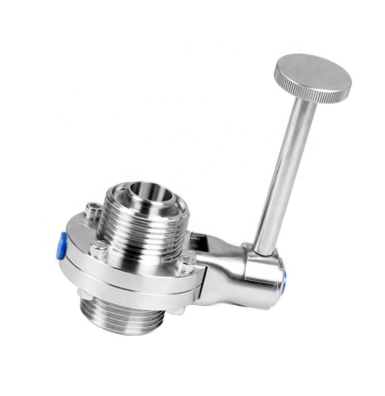

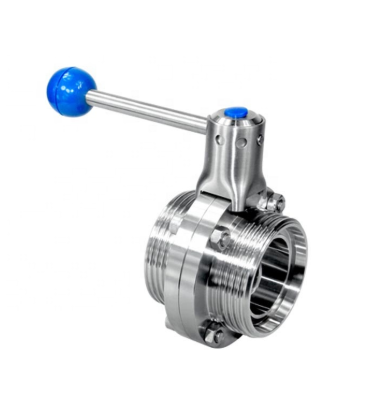

Donjoy sanitary stainless steel clamped manual butterfly valve
· Model NO.: Butterfly valve
· FOB Price: USD 19.00-20.00 / set
· Min order:1 set
· Accept Min order: Yes
· Supply Ability:1000 set / Month
· Country of Origin: Ningbo
|
Product Description
|
· Structure: Butterfly
· Power: Manual
· Temperature of Media: Normal Temperature
· Media: Oil
· Place of Origin: CN; ZHE
· Application: General
· Port Size:1/2"-12"
· Model Number: Butterfly valve
· Brand Name: Donjoy
|
DONJOY Stainless steel pneumatic threaded butterfly valve with controller
|

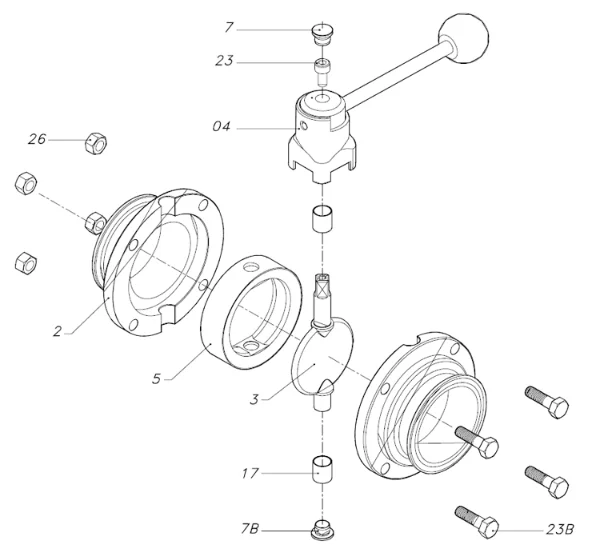

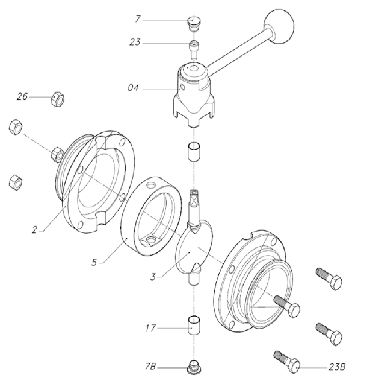

Product structure
|
 |
Technical Parameters
|
Max.working pressure
|
10Bar
|
Max.Working Temperature
|
120 degree C
|
Valve Body Material
|
1.4404/1.4301, SS304/SS316L
|
Seal Material
|
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
|
Availably size
|
1/2"-12", DN10-DN300
|
Availably connection
|
Clamp / weld / thread/ weld thread/ flange
|
Availably standard
|
3A/DIN/SMS/RJT/ISO/IDF
|
Operated
|
Manual, Pneumatic, Electric
|
Control
|
Sensor, C-TOP, C-top controller(AS-I)
|
Handle option
|
pull handle, plastic/SS multi-positon handle
|
Handle application
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
|
Actuator application
|
Stainless steel actuator/ Horizontal pneumatic actuator
|
Certificate
|
ISO, PED/97/23/EC, FDA.177.2600
|
|

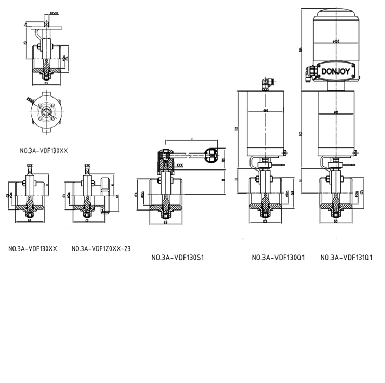

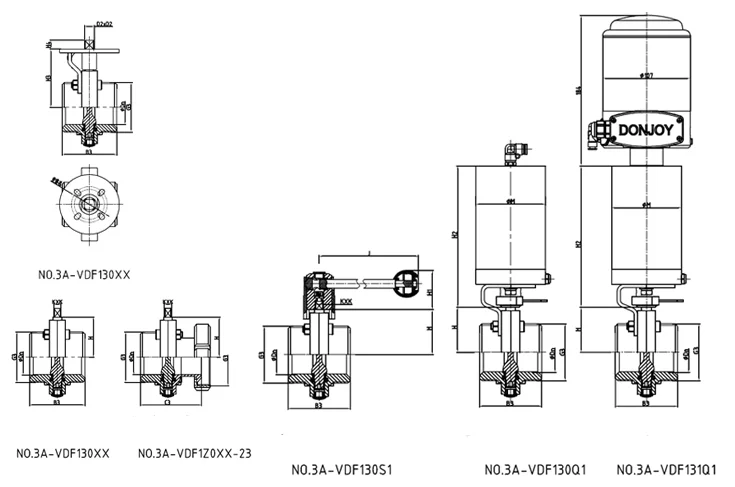

Dimensions
|
 |
SIZE
|
Dn
|
KXK
|
H
|
H1
|
H2
|
B3
|
C3
|
3A
|
H3
|
H4
|
D2
|
|
G3
|
1”
|
22.1
|
8X8
|
40
|
43.5
|
172.5
|
66
|
93
|
37.1X1/8Acme
|
68.4
|
13
|
11
|
F04-F05
|
1 ¼”
|
28.8
|
8X8
|
40
|
43.5
|
172.5
|
70
|
95
|
45.9 X1/8Acme
|
69.4
|
11.5
|
11
|
F04-F05
|
1 ½”
|
34.8
|
8X8
|
44.5
|
43.5
|
172.5
|
70
|
98
|
50.6 X1/8Acme
|
73.3
|
11.6
|
14
|
F04-F05
|
2”
|
47.5
|
10X10
|
52.5
|
47.5
|
172.5
|
76
|
102
|
64.1 X1/8Acme
|
81.1
|
13.9
|
14
|
F04-F05
|
2 ½”
|
60.2
|
10X10
|
59
|
47.5
|
172.5
|
80
|
112.5
|
77.6 X1/8Acme
|
87.5
|
12.5
|
14
|
F04-F05
|
3”
|
72.9
|
10X10
|
65.5
|
47.5
|
172.5
|
84
|
114.5
|
91.1 X1/8Acme
|
95.3
|
11.5
|
14
|
F04-F05
|
4”
|
97.4
|
11X11
|
79
|
50
|
172.5
|
104
|
128.5
|
119.2 X1/8Acme
|
109.7
|
17.5
|
17
|
F04-F05
|
|
Lưu ý
Sản phẩm Donjoy sanitary stainless steel clamped manual butterfly valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
