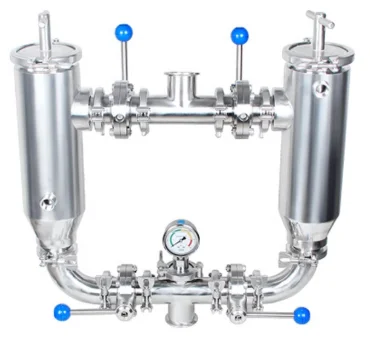

 donjoy-ss304-and-ss316l-high-precision-filtration-air-water-straight-angle-duplex-filter-1

DONJOY SS304 and SS316L high precision filtration air water straight angle duplex filter

  • FOB Price: USD 325.60-372.00 / pieces
  • Min order:2 pieces
  • Accept Min order: Yes
  • Supply Ability:500 pieces / Month
  • Country of Origin: Ningbo or Shanghai

Product Description

  • Place of Origin: CN; ZHE
  • Applicable Industries: Food & Beverage Factory
  • Warranty: Unavailable
  • After-sales Service Provided: Online support
  • Brand Name: DONJOY

DONJOY SS304 and SS316L high precision  filtration air water straight angle duplex filter

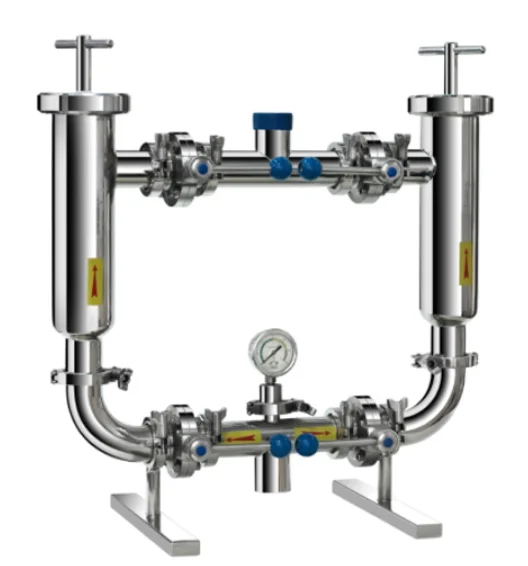

Product structure

 donjoy-ss304-and-ss316l-high-precision-filtration-air-water-straight-angle-duplex-filter-2

Technical Parameters



Product Name:

DONJOY SS304 and SS316L high precision  filtration air water straight angle duplex filter

Body Material:

1.4404/1.4301, SS304/SS316L

Seal Material:

EPDM , FDA177.2600

Inner polish:

Ra<0.8μm

External polish:

mirror polish

Mesh size:

0.5-2.0mm

Screen:

30-300mesh

 Max working pressure:

 10 bar 145 PSI

Working Temperature:

-10°C~120 °C(EPDM)

Availably  size:

DN25-DN100 1"-4"

Availably connection:

Clamp / weld / thread

Availably standard:

DIN/ SMS/ RJT/ IDF/ 3A

Type option:

Straight type(NO.2102003)

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc

Function:

to eliminate the invisable solids from dairy, beverage and pulps, to purify the liquids.

Advantages:

The two filters can run alternatively and continously. Can be replaced or cleaned without powering off.

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.



Dimensions

 donjoy-ss304-and-ss316l-high-precision-filtration-air-water-straight-angle-duplex-filter-3

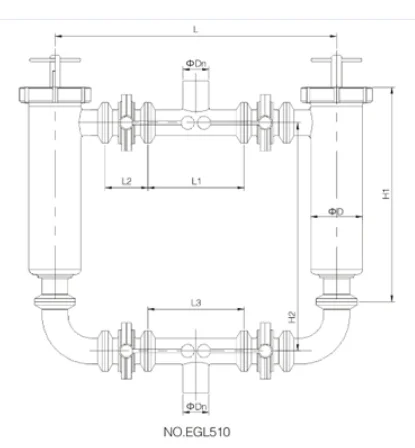

Duplex filter (Straight type)

SIZE

Dn

D

D1

L

L1

L2

H1

H2

2’

51

85

64

532

200

76

360

557

donjoy-ss304-and-ss316l-high-precision-filtration-air-water-straight-angle-duplex-filter-4

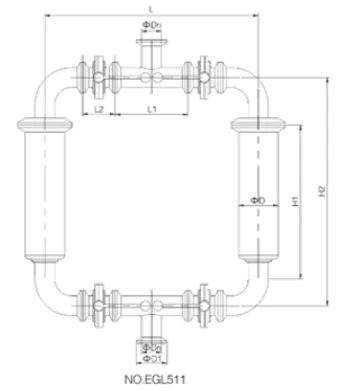

Duplex filter (Angel type)

SIZE

Dn

D

D1

L

L1

L2

H1

H2

1.5”

38

85

510

190

70

190

369

362

2”

51

85

532

200

76

200

369

362

2.5”

63.5

102

605

218

80

218

505

529

3”

76

114

632

210

84

210

523

522

4”

101.6

154

799

337

104

254

650

693
