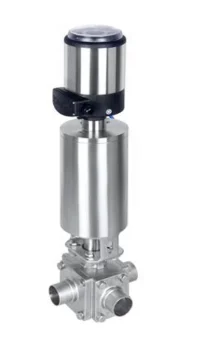

DONJOY stainless steel control valve pneumatic non-retention 3 way Ball Valve with control head

Name: DONJOY stainless steel control valve pneumatic non-retention 3 way Ball Valve with control head
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY stainless steel control valve pneumatic non-retention 3 way Ball Valve with control head

· Model NO.: VQW

· FOB Price: USD 200.00-1500.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:1000 piece / Month

· Country of Origin: ningbo

Product Description

· Model NO.: VQW

· FOB Price: USD 200.00-1500.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:1000 piece / Month

· Country of Origin: ningbo

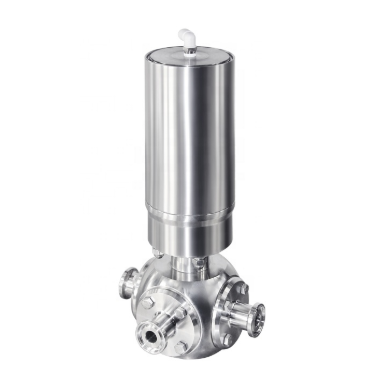

DONJOY forged stainless steel Industrial 1pc ball valve

Product structure

donjoy-stainless-4

donjoy-stainless-steel-control-valve-pneumatic-non-retention-3-way-ball-valve-with-control-head-picture-1

Technical Parameters

Product Name:	Non-retention Ball Valve with control head
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	Weld, Clamp
Availably standard:	DIN,SMS,3A

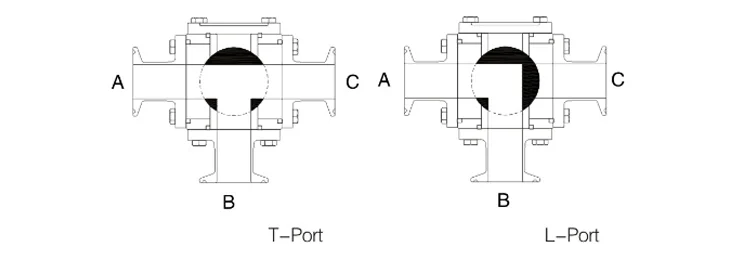

Ball Type:	T port or L port
Operated:	Manual, Pneumatic, Electric
Certificate:	FDA,CE

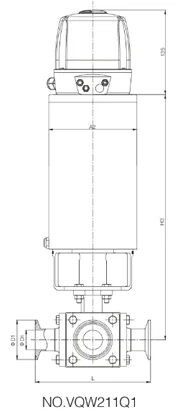

Dimensions

INCH

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3
1”	F04\F05	22.4	25.4	50.5	148	92	165	210	190	240	165	247	86
1.25”	F04\F05	28.8	31.8	50.5	152	96	165	215	207	245	165	252	86
1.5”	F06\F07	35.1	38.1	50.5	180	100	165	234	207	252	165	312	113
2”	F07\F07	47.8	50.8	64	198	106	165	262	213	271	165	331	113
2.5”	F07\F10	59.5	63.5	77.5	252	116	236	274	213	314	212	380	133
3”	F07\F10	72.2	76.2	91	264	137	236	341	259	335	212	402	133
4”	F07\F10	97.6	101.6	119	323	165	236	396	267	565	269	448	196

DIN

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3
DN25	F04\F05	22.4	25.4	50.5	148	92	165	210	190	240	165	247	86
DN32	F04\F05	28.8	31.8	50.5	152	96	165	215	207	245	165	252	86
DN40	F06\F07	35.1	38.1	50.5	180	100	165	234	207	252	165	312	113
DN50	F07\F07	47.8	50.8	64	198	106	165	262	213	271	165	331	113
DN65	F07\F10	59.5	63.5	77.5	252	116	236	274	213	314	212	380	133
DN80	F07\F10	72.2	76.2	91	264	137	236	341	259	335	212	402	133
DN100	F07\F10	97.6	101.6	119	323	165	236	396	267	565	269	448	196
