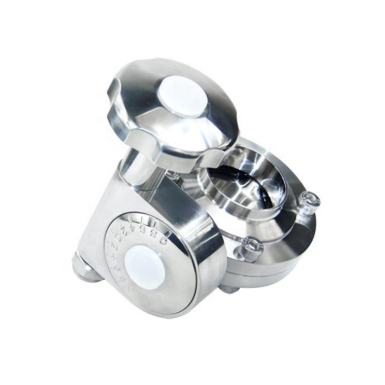

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-9

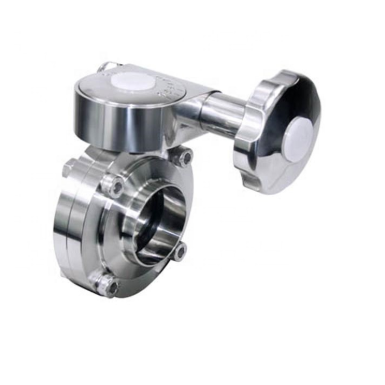

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-8

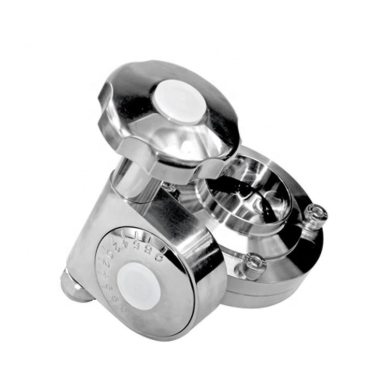

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-7
donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-12
donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-11

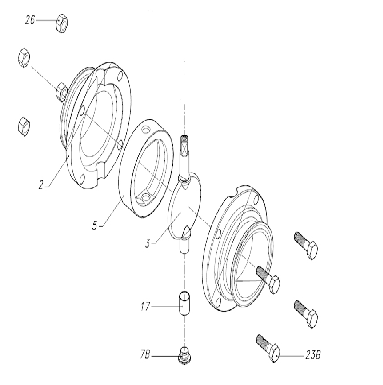

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-10

Donjoy Stainless steel fine adjustment butterfly valve with 316L

0 đánh giá
Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Tư vấn giá tốt

Tiêu đề là bắt buộc!

Đội dài tối đa là 120

Họ và tên là bắt buộc!

Đội dài tối đa là 120

Email là bắt buộc!

Số điện thoại là bắt buộc!

Số điện thoại không đúng định dạng!

Nội dung là bắt buộc!

Đội dài tối đa là 500

Mô tả

Đánh giá

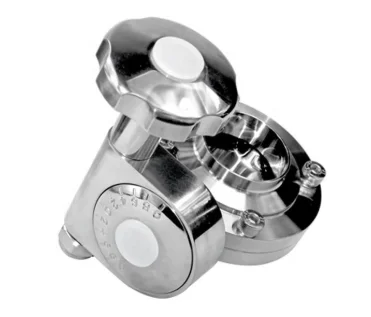

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-1

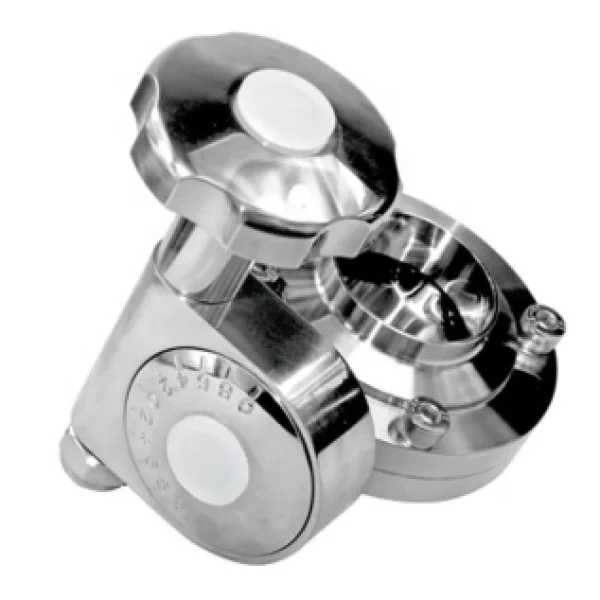

Donjoy Stainless steel fine adjustment butterfly valve with 316L

·         Model NO.: Butterfly valve

·         FOB Price: USD 37.70-45.30 / pieces

·         Min order:2 pieces

·         Accept Min order: Yes

·         Supply Ability:1000 pieces / Month

·         Country of Origin: NINGBO OR SHANGHAI

Product Description

·         Place of Origin: CN; ZHE

·         Power: Manual

·         Structure: Butterfly

·         Temperature of Media: Normal Temperature

·         Application: Fluid control

·         Media: Fluid

·         Brand Name: DONJOY

·         Model Number: Butterfly valve

·         Port Size:DN25-DN150, 1"-6"

Donjoy Stainless steel fine adjustment butterfly valve with 316L

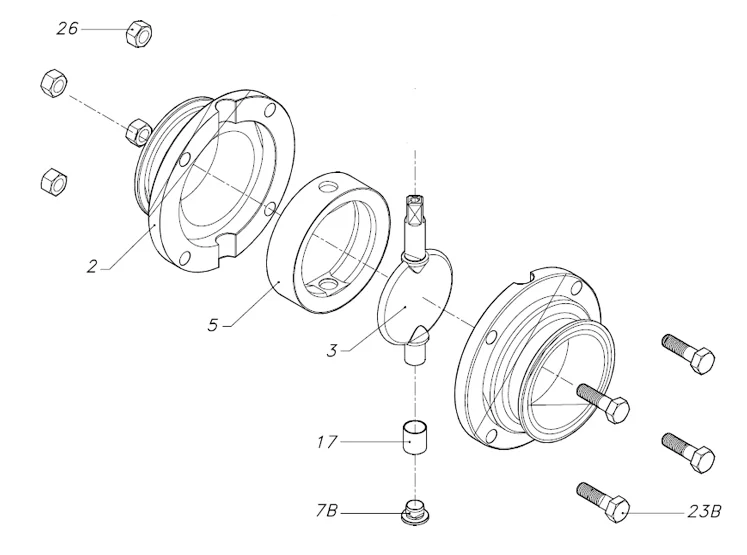

Product structure

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-4

Technical Parameters

Max.working pressure

10Bar

Max.Working Temperature

130 degree C

Valve Body Material

SS304/SS316L

Seal Material

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Availably  size

1"-6", DN25-DN150

Availably connection

Clamp / weld / thread/ weld thread/ flange

Availably standard

3A/DIN/SMS/RJT/ISO/IDF

Operated

Manual, Pneumatic, Electric

Control

Sensor, C-TOP, C-top controller(AS-I)

Handle option

pull handle, plastic/SS multi-positon handle

Handle application

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Actuator application

Stainless steel actuator/ Horizontal pneumatic actuator

Certificate

ISO, PED/97/23/EC, FDA.177.2600

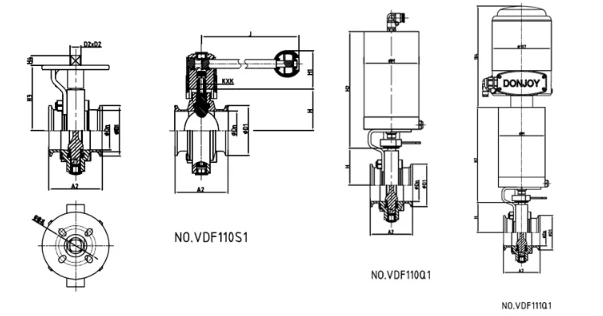

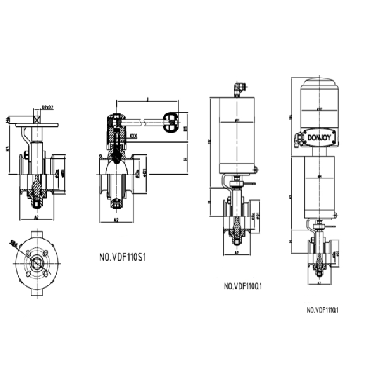

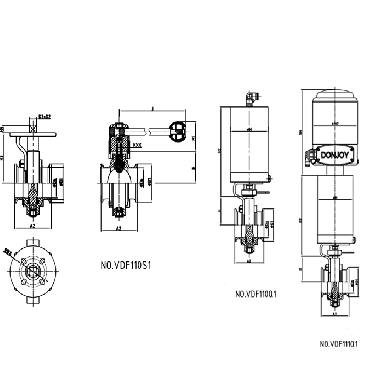

Dimensions

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-5

SIZE

Dn

D1

J

H

H1

H2

M

A2

H3

H4

D2



½”

9.7

25.4

126

40

43.5

172.5

86

66

68.5

12.5

11

F04-F05

¾”

16.1

25.4

126

40

43.5

172.5

86

66

68.5

12.5

11

F04-F05

1”

22.4

50.5

126

40

43.5

172.5

86

66

68.4

13

11

F04-F05

1 ¼”

28.8

50.5

126

40

43.5

172.5

86

66

69.4

11.5

11

F04-F05

1 ½”

35.1

50.5

126

44.5

43.5

172.5

86

70

73.3

11.6

14

F04-F05

F45

41

64

126

46.5

43.5

172.5

86

74

73.3

11.6

14

F04-F05

F48

45

64

126

48.5

43.5

172.5

86

76

73.3

11.6

14

F04-F05

2”

47.8

64

133

52.5

47.5

172.5

86

76

81.1

13.9

14

F04-F05

F57

53

77.5

144

54

47.5

172.5

86

76

87.5

12.5

14

F04-F05

2 ½”

59.5

77.5

144

59

47.5

172.5

86

80

87.5

12.5

14

F04-F05

3”

72.2

91

144

65.5

47.5

172.5

86

84

95.3

11.5

14

F04-F05

3.5”

85

106

144

72

50

172.5

86

86

99.4

15.5

14

F04-F05

4”

97.6

119

144

79

50

172.5

86

104

109.7

17.5

17

F04-F05

4”

97.6

119

160

81

50

172.5

86

104

111.5

15.7

17

F04-F05

108

104

119

160

82.5

50

172.5

86

106

111.5

15.7

17

F04-F05

114.3

110.3

130

160

82.5

52.5

248

113

106

111.5

15.7

17

F04-F05

133

128

144.5

220

94.5

52.5

248

113

122

158.6

19

17

F07

6”

146.8

167

220

110

52.5

285

133

146

174

19

17

F07

159

153

183

220

110

52.5

285

133

146

174

19

17

F07

8”

197.6

217.4

360

145

52.5

306

166

166

208

20

22

F07

219

211

233.5

360

145

52.5

306

166

166

208

20

22

F07

10”

247.2

268

360

174

52.5

306

166

166

236.7

20

22

F07

12”

298.2

319

360

174

52.5

306

166

146

236.7

20

22

F07

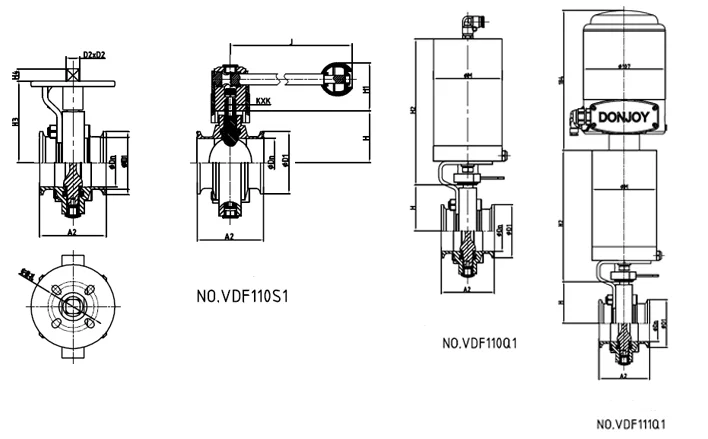

donjoy-stainless-steel-fine-adjustment-butterfly-valve-with-316l-picture-6

SIZE

Dn

D1

J

H

H1

H2

M

A2

H3

H4

D2



DN10

10

34

126

40

43.5

172.5

86

66

68.4

12.6

11

F04-F05

DN15

15

34

126

40

43.5

172.5

86

66

68.4

12.6

11

F04-F05

DN20

19

34

126

40

43.5

172.5

86

66

68.4

12.6

11

F04-F05

DN25

25

50.5

126

40

43.5

172.5

86

66

69

12

11

F04-F05

DN32

31

50.5

126

44.5

43.5

172.5

86

66

73.5

12.1

11

F04-F05

DN40

37

50.5

126

46.5

43.5

172.5

86

70

73.5

14

14

F04-F05

DN50

49

64

133

54.5

47.5

172.5

86

76

82.9

12.8

14

F04-F05

DN65

66

91

144

64

47.5

172.5

86

80

90.6

14

14

F04-F05

DN80

81

106

160

70.5

50

172.5

86

84

100

14.6

14

F04-F05

DN100

100

119

160

81

50

172.5

86

104

109.7

19

17

F04-F05

DN125

125

144.5

220

94.5

52.5

248

113

122

158.6

19

17

F07

DN125

125

155

220

94.5

52.5

248

113

122

158.6

19

17

F07

DN150

150

167

220

110

52.5

285

133

146

174

19

17

F07

DN150

150

183

220

110

52.5

285

133

146

174

19

17

F07

DN200

200

217.4

360

145

52.5

306

166

166

208

20

22

F07

DN200

200

233.5

360

145

52.5

306

166

166

208

20

22

F07

DN250

250

268

360

174

52.5

306

166

167

236.7

20

22

F07

DN300

300

319

360

174

52.5

306

166

146

236.7

20

22

F07

Lưu ý

Sản phẩm Donjoy Stainless steel fine adjustment butterfly valve with 316L được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
