DONJOY stainless steel flow control valve pneumatic multi-function diaphragm valve

Name: DONJOY stainless steel flow control valve pneumatic multi-function diaphragm valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

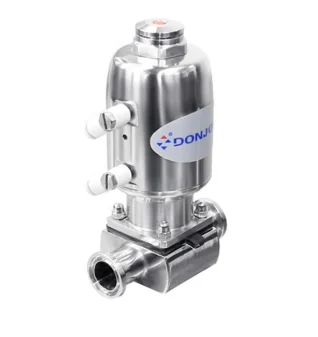

donjoy-stainless-steel-flow-control-valve-1

DONJOY stainless steel flow control valve pneumatic multi-function diaphragm valve

· Model NO.: Diaphragm valve

· FOB Price: USD 166.00-190.00 / pieces

· Min order:2 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: Ningbo/Shanghai

Product Description

· Structure: Diaphragm

· Power: Pneumatic

· Temperature of Media: Normal Temperature

· Media: Water

· Place of Origin: CN; ZHE

· Application: General

· Port Size:1/4"-3/4"DN6-DN15

· Model Number: Diaphragm valve

· Brand Name: Donjoy

DONJOY stainless steel flow control valve pneumatic multi-function diaphragm valve

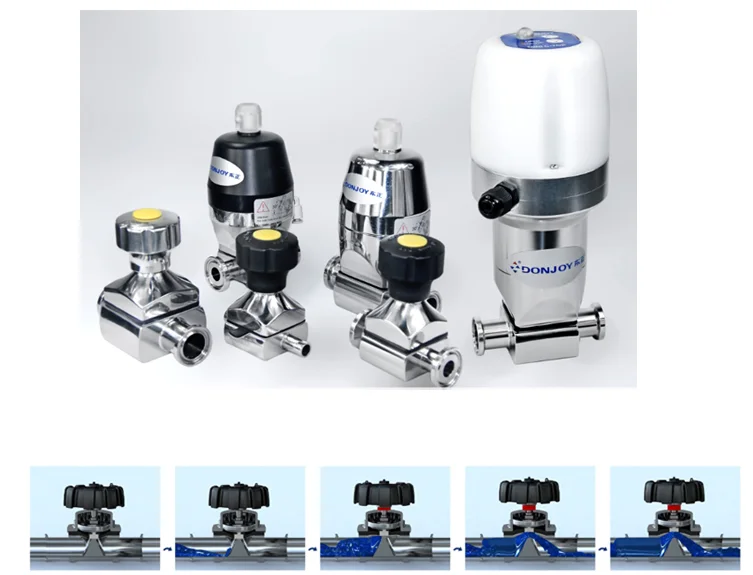

Product structure

donjoy-stainless-steel-flow-control-valve-2

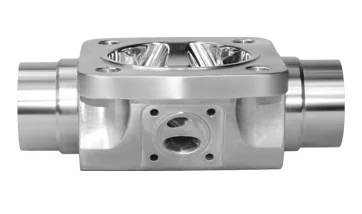

Diapharagm valve forging body

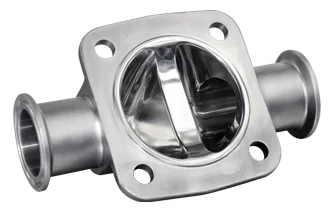

Diapharagm valve casging body

donjoy-stainless-steel-flow-control-valve-4

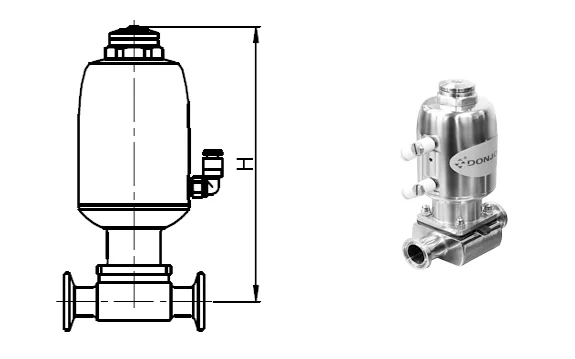

Technical Parameters

donjoy-stainless-steel-flow-control-valve-5

SIZE	H
DN10	128
DN15	130
½”	128
¾”	130

donjoy-stainless-steel-flow-control-valve-6

Dimensions

Availably size	1/4"-3/4", DN6-DN15
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	Normally close EPDM 8 bar, PTFE 6 bar(option) Normally close EPDM 6 bar, PTFE 4.5 bar(standard) and double action EPDM 8 bar, PTFE 6 bar
Actuators	Assemble different actuators can meet the higher pressure rating
Pneumatic actuators suitable for body	straight, tee, multichannel body, welding combination valve, tank bottom valve
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Lưu ý

Sản phẩm DONJOY stainless steel flow control valve pneumatic multi-function diaphragm valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
