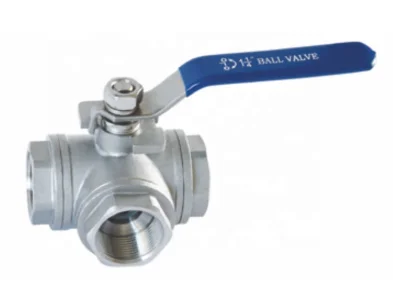

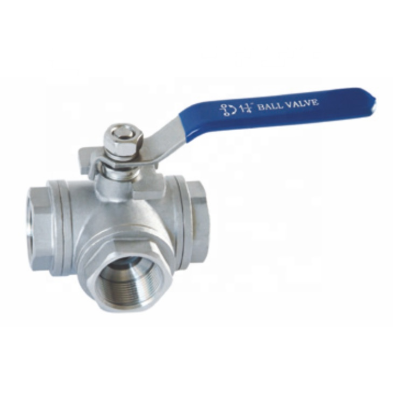

DONJOY Stainless Steel industrial Ball Valve 3 way valve

·    Model NO.: IST

·    FOB Price: USD 15.00-100.00 / set

·    Min order:1 set

·    Accept Min order: Yes

·    Supply Ability:500 set / Quarter

  • Country of Origin: Ningbo or Shanghai

Product Description

·         Temperature of Media: High Temperature

·         Temperature of Media: Low Temperature

·         Temperature of Media: Medium Temperature

·         Temperature of Media: Normal Temperature

·         Power: Manual

·         Structure: Ball

·         Application: Flow control

·         Media: Liquid

·         Brand Name: Donjoy

·         Model Number: IST

·         Port Size:DN8-DN50

Product structure

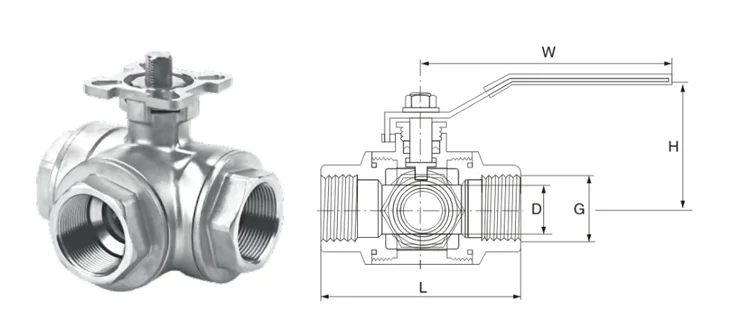

Dimensions

Female Three Way Ball Valve

DN

G

d

L

H

W

8

¼”

5

40

28

70

10

3/8”

7

45

30

70

15

½”

9

55

34

90

20

¾”

12

60

38

90

25

1”

15

70

50

110

32

1 ¼”

20

80

56

120

40

1 ½”

25

86

60

130

50

2”

32

101

65

140

65

2 ½”

38

117

72

170

80

3”

50

140

105

185

Technical Parameters

Product Name:

DONJOY Stainless Steel industrial Ball Valve 3 way valve

DONJOY Stainless Steel industrial Ball Valve 3 way valve

Valve Body Material:

CF8/CF8M

CF8/CF8M

Seal Material:

PTFE

PTFE

Max. Working Pressure:

PN16-PN64

PN16-PN64

Max. Working Temperature:

-40-150 degree

-40-150 degree

Availably  size:

DN8-DN50 or 1/4"- 2"

DN8-DN50 or 1/4"- 2"

Availably connection:

Female

Female

Availably standard:

BSP/NPT

BSP/NPT

Operated:

Handle/Manual

Handle/Manual

Ball:

T port, L port

T port, L port





Lưu ý

Sản phẩm DONJOY Stainless Steel industrial Ball Valve 3 way valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
