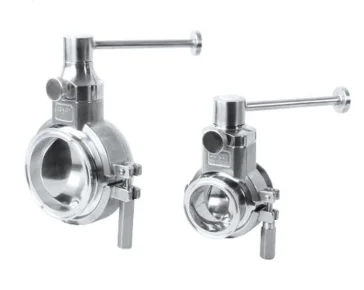

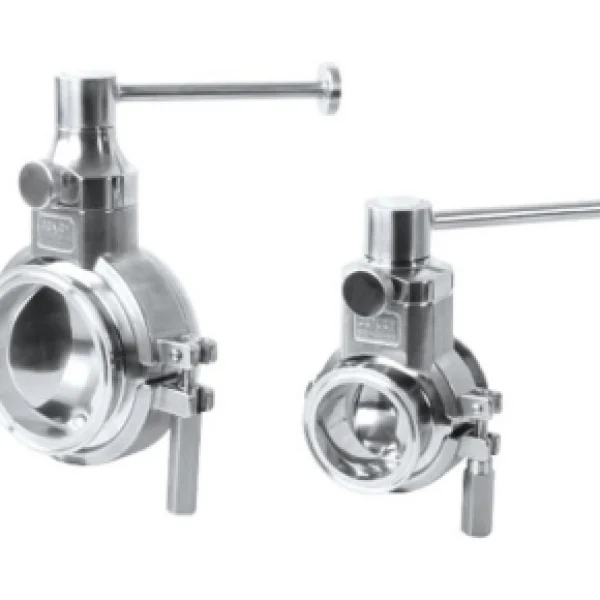

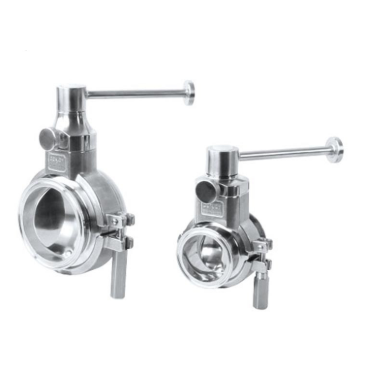

DONJOY Stainless steel powder butterfly valve for powder

Name: DONJOY Stainless steel powder butterfly valve for powder
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Stainless steel powder butterfly valve for powder

· Model NO.: New

· FOB Price: USD 223.00-747.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:5000 piece / Month

· Country of Origin: NINGBO OR SHANGHAI

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Manual

· Media: Water

· Structure: Butterfly

· Brand Name: DONJOY

· Model Number: New

· Port Size:DN25-100 1"-4"

DONJOY Stainless steel powder butterfly valve for powder

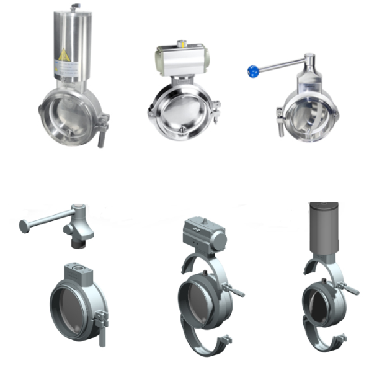

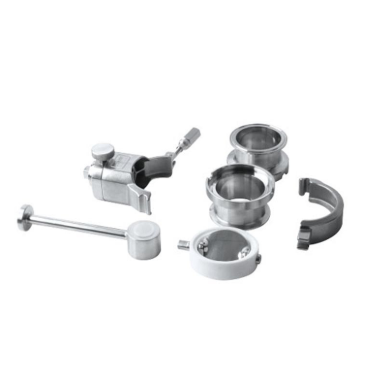

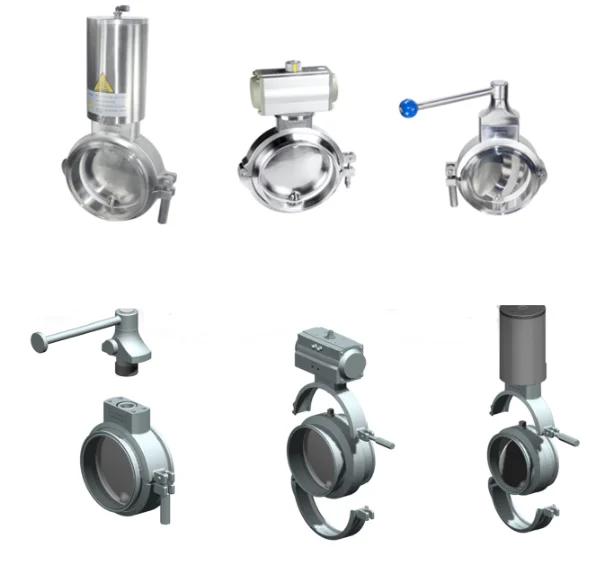

Product structure

donjoy-stainless-steel-powder-butterfly-valve-for-powder-picture-3

Technical Parameters

Max.working pressure	10Bar
Max.Working Temperature	120 degree C
Valve Body Material	1.4404/1.4301, SS304/SS316L
Seal Material	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably size	4"-12", DN10-DN300
Availably connection	Clamp / weld / thread/ weld thread/ flange
Availably standard	3A/DIN/SMS/RJT/ISO/IDF
Operated	Manual, Pneumatic, Electric
Control	Sensor, C-TOP, C-top controller(AS-I)
Handle option	pull handle, plastic/SS multi-positon handle
Handle application	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Actuator application	Stainless steel actuator/ Horizontal pneumatic actuator
Certificate	ISO, PED/97/23/EC, FDA.177.2600

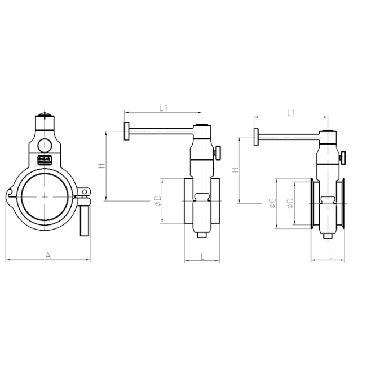

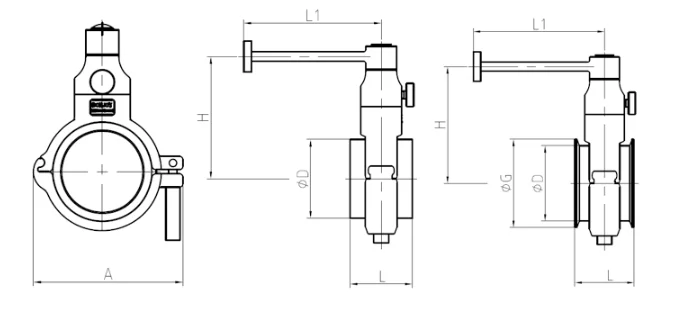

Dimensions

donjoy-stainless-steel-powder-butterfly-valve-for-powder-picture-4

	D	G	L	A
	D	G	L	A	L1	H
2.5	36.5	77.5	95	122	160	112
4”	101.6	119	80	180	160	158
5”	127	145	90	216	200	207
6”	152.4	167	90	240	200	207
8”	203.2	217	133	321	260	243
10”	254	268	120	378	260	268

	D	G	L	A
	D	G	L	A	L1	H
DN100	104	119	80	180	160	158
DN125	180	145	90	216	200	207
DN150	180	167	90	240	200	207
DN200	180	217	133	321	260	243
DN250	180	268	120	378	260	268

Lưu ý

Sản phẩm DONJOY Stainless steel powder butterfly valve for powder được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
