DONJOY Stainless steel pressure round man way with sight glass for tank
Model NO.: 2104001 round man way
FOB Price: USD 115.00-131.00 / sets
Min order:2 sets
Accept Min order: Yes
Supply Ability:1000 sets / Month
Country of Origin: Ningbo or Shanghai
Product Description
Place of Origin: CN;ZHE
Brand Name: DONJOY
Model Number:2104001 round man way
`DONJOY Stainless steel pressure round man way with sight glass for tank
Product structure
Technical Parameters
Product Name:
Stainless steel pressure round manway with sight glass for tank
Material:
1.4404/1.4301, SS304/SS316L
Gasket:
EPDM/NBR/SILICION/FPM FDA177.1600
Internal Surface :
Ra0.8μm~0.5μm
Outside Surface:
Stain or mirror polish
Availably size:
200~ 600mm
Height Option:
100,120,150mm
Pressure:
2~5 bar; Can be 10 bar if customer requires
Sight glass option:
Union type sight glass, flange type sight glass
Application Scope:
Widely used for pressure vessel in the fields of food, beverage, chemical, etc
Design:
With pressure; Outside opening manhole cover; plastic hand wheel or stainless steel hand wheel.

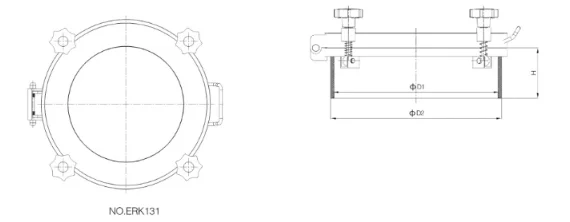

Dimensions
Glass pressure man hole cover
SIZE
H
D1
D2
Ø200
100
194
200
Ø220
100
214
220
Ø300
100
294
300
Ø350
100
344
350
Ø400
100
394
400
Ø430
100
424
430
Ø450
100
444
450
Ø500
100
494
500
Ø600
100
594
600
Height (H1) can be customized to 120mm, 150mm, etc. The thickness can be customized to 4mm or other sizes. The amount of handles of handles can be as per customers request.
