Máy đồng hóa sữa

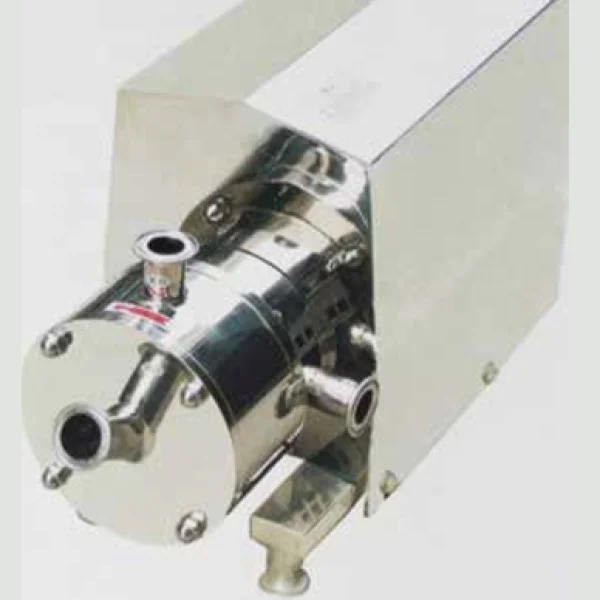

Online powder Suction type Dispersing Emulsifier



On-Line Powder-Suction Production Type

Lou suction line to avoid dust pollution, high effciancy solid-liquid dispersion, dissolution of the work becomes easy

Excellent selection, lower noise, run more smoothly, ensuring high quality of the machine

Foe non-polluting materials, module combination, pharmaceutical, food, cosmetics high purity require more thought choice

Reasonable structure vacuum and pressure conditions

Optional mechanical seal: single face, double face

Suitable temperature

Motor: riot or ordinary

Material: 304 or 316L

Technical Parameters



kw

rpm

M3/h

mpa





INM-BOXR-120

4

2900

12

0.08

Φ32

Φ50

INM-BOXR-140

7.5

2900

18

0.1

Φ40

Φ63

INM-BOXR-165

15

2900

25

0.15

Φ50

Φ76

INM-BOXR-200

35

2900

50

0.2

Φ63

Φ89

INM-BOXR-260

75

2900

80

0.35

Φ76

Φ102

Processing flow depends on the viscosity of the material and final product quality requirements

Feeding capacity with short, non-self-priming capabilities are required to use the high feed; material viscosity or high solids content can not lead a feed pump, pump pressure and flow with the selected models match

If you encounter selection questions, please call consultation companies, professional sales engineers to commend

Note: Mixed capacity 30-150kg/min

Measurement conditions: medium is water, viscosity and density of material changes in the flow of people making a difference, relative power will makes a difference
