Phin lọc inox

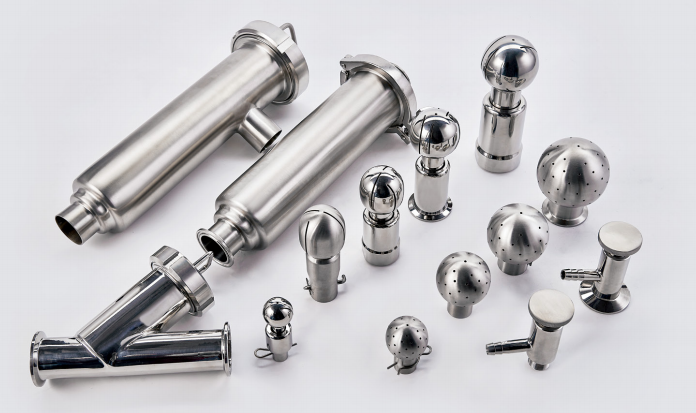

FILTER/CLEANING BALL
|
 |
|
Sight Glass Techinical Data
|
|
Standard
|
DIN, SMS,3A,ISO
|
|
Size
|
1/4",DN25-DN100
|
|
Material
|
Contact medium parts:304/316
Non-contact medium parts,304
|
|
Seal material
|
EPDM,SILICONE,NBR
|
|
Working temperature
|
-10°C to 150°C (EPDM)
-20°C to 120°C (SILICONE)
|
|
Pressure
|
Working pressure: 0 to 8 bar
|
|
Roughness
|
Internal surface:Ras0.8um
External surface: Matt
|
|
Connection
|
Weld end, Thread end, Clamp end
|
|
|
Cleaning ball Techinical data
|
|
Standard
|
DIN, SMS,3A,ISO
|
|
Size
|
1/2"-2" DN15-DN50
|
|
Material
|
Contact medium parts:304/304L/316/316L
Non-contact medium parts,304
|
|
Seal material
|
EPDM,SILICONE,NBR
|
|
Working temperature
|
-10°C to 150°C (EPDM)
-20°C to 120°C (SILICONE)
|
|
Pressure
|
Working pressure: 2 bar
|
|
Roughness
|
Ras0.4um
Matt
|
|
Connection
|
Weld end, Thread end, Clamp end, Flange end
|
|
LƯU Ý:
Sản phẩm Phin lọc inox được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
