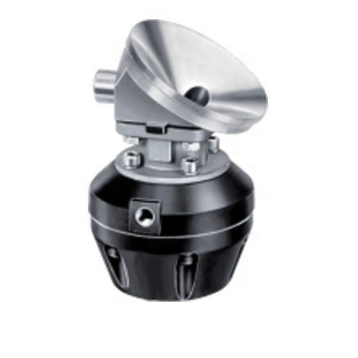

Plastic pneumatic tank bottom diaphragm valve bottom valve

0 Bình luận

Nhà sản xuất: DONJOY
Dòng sản phẩm: VAN INOX | STAINLESS STEEL VALVE
Chủng loại sản phẩm: Van màng | Diaphragm Valve
Phân loại sản phẩm:

· Model NO.: Zero dead

· FOB Price: USD 242.00-265.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: Ningbo or Shanghai

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Medium Temperature

· Power: Manual

· Media: Water

· Structure: Diaphragm

· Brand Name: DONJOY

· Model Number: Zero dead

· Port Size:1/2"-2",DN10-DN50

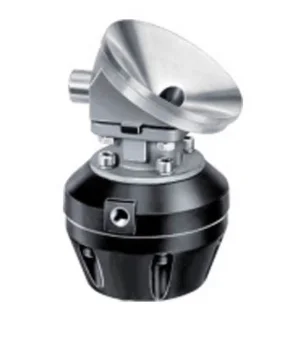

plastic pneumatic tank bottom diaphragm valve bottom valve

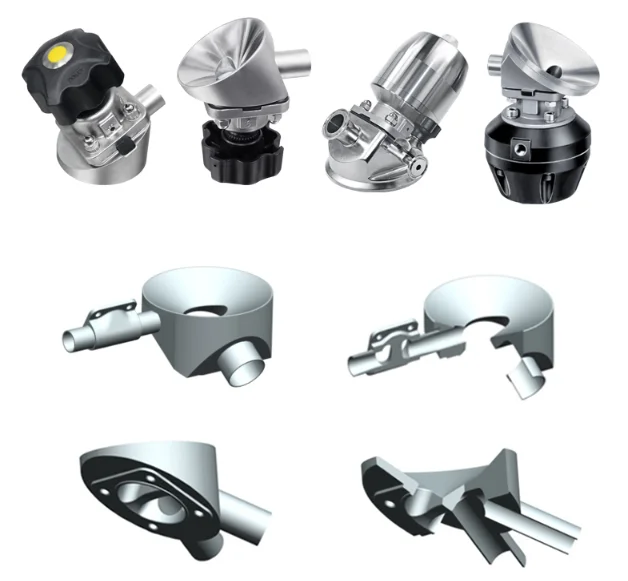

Product structure

Technical Parameters

Availably size	1"-4", DN25-DN100
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	10Bar
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

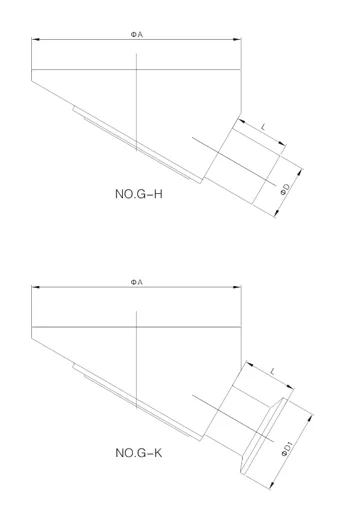

Dimensions

Dimension of diaphragm valve

DIN32676/DIN11850-1/2

SIZE	D	D1	L	A
DN15	18/19	34	25	95
DN20	22/23	34	25	95
DN25	28	50.5	25	95
DN32	34	50.5	25	126
DN40	40	50.5	30	134
DN50	52	64	30	161
DN65	70	91	30	250
DN80	85	106	30	250
DN100	104	119	30	320

ASME BPE/ASTM 269

SIZE	D	D1	L	A
¾”	19	25.4	25	95
1”	25.4	50.5	25	95
1.25”	31.8	50.5	25	95
1.5”	38.1	50.5	25	126
2”	50.8	64	30	134
2.5”	63.5	77.5	30	161
3”	76.2	91	30	250
3.5”	89	106	30	250
4”	101.6	119	30	320

Lưu ý

Sản phẩm Plastic pneumatic tank bottom diaphragm valve bottom valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
