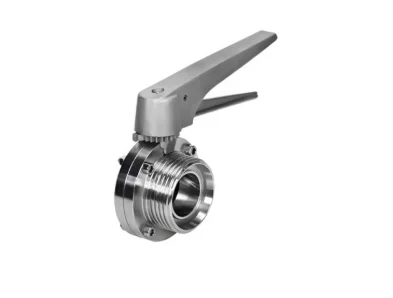

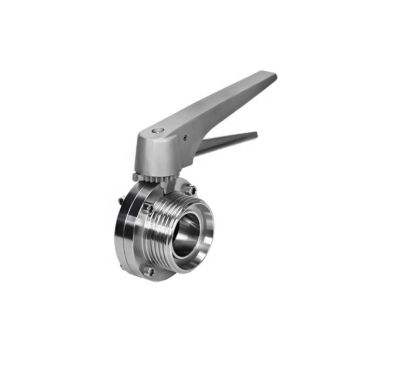

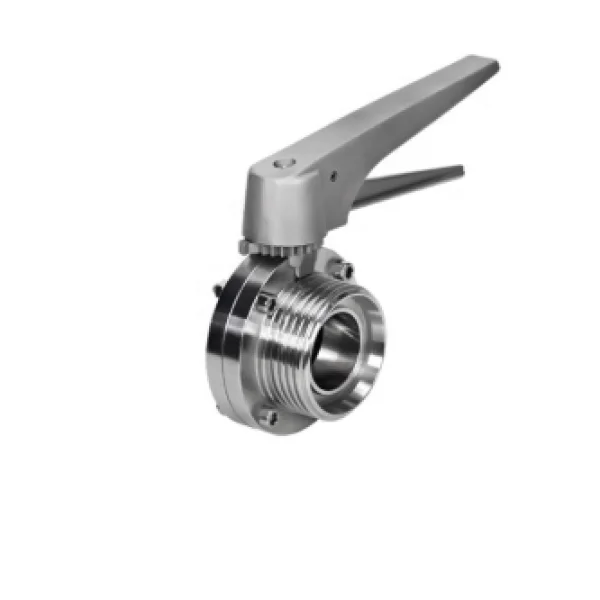

Sanitary single weld single thread butterfly valve with pull handle

Name: Sanitary single weld single thread butterfly valve with pull handle
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Sanitary single weld single thread butterfly valve with pull handle

· Model NO.: Butterfly valve

· FOB Price: USD 19.00-165.00 / pieces

· Min order:50 pieces

· Accept Min order: Yes

· Supply Ability:10000 pieces / Month

· Country of Origin: NINGBO OR SHANGHAI

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Manual

· Media: Water

· Structure: Butterfly

· Brand Name: DONJOY

· Model Number: Butterfly valve

· Port Size:DN10-DN150,25-104

Sanitary single weld single thread butterfly valve with pull handle

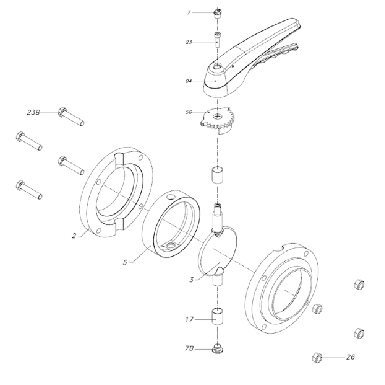

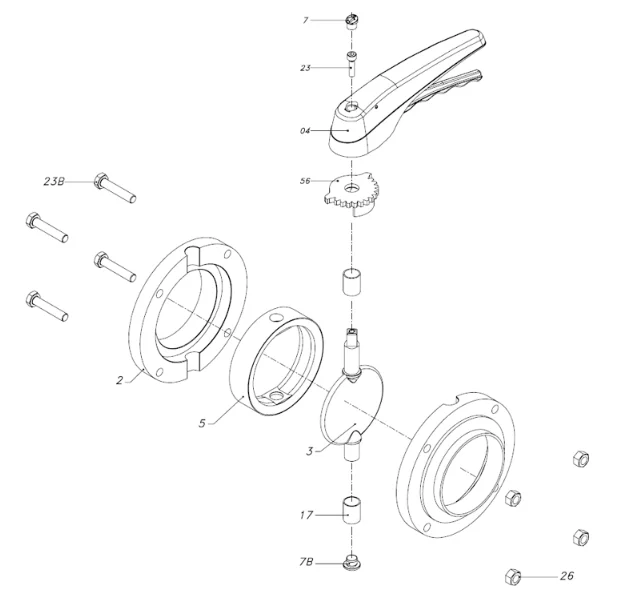

Product structure

Technical Parameters

Max.working pressure	10Bar
Max.Working Temperature	120 degree C
Valve Body Material	1.4404/1.4301, SS304/SS316L
Seal Material	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably size	1/2"-12", DN10-DN300
Availably connection	Clamp / weld / thread/ weld thread/ flange
Availably standard	3A/DIN/SMS/RJT/ISO/IDF
Operated	Manual, Pneumatic, Electric
Control	Sensor, C-TOP, C-top controller(AS-I)
Handle option	pull handle, plastic/SS multi-positon handle
Handle application	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Actuator application	Stainless steel actuator/ Horizontal pneumatic actuator
Certificate	ISO, PED/97/23/EC, FDA.177.2600

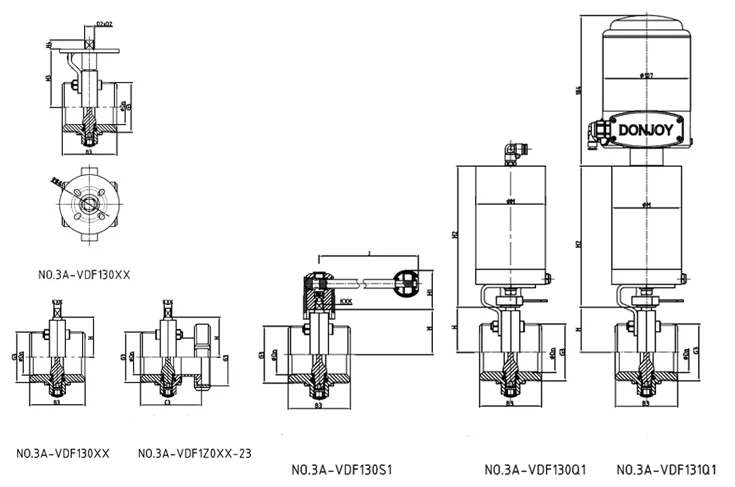

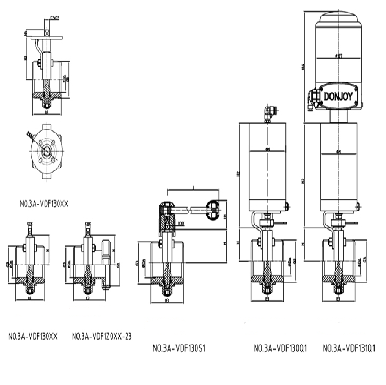

Dimensions

sanitary-single-weld-single-thread-butterfly-valve-with-pull-handle-picture-3

SIZE	Dn	KXK	H	H1	H2	B3	C3	3A	H3	H4	D2
SIZE	Dn	KXK	H	H1	H2	B3	C3	G3	H3	H4	D2
1”	22.1	8X8	40	43.5	172.5	66	93	37.1X1/8Acme	68.4	13	11	F04-F05
1 ¼”	28.8	8X8	40	43.5	172.5	70	95	45.9 X1/8Acme	69.4	11.5	11	F04-F05
1 ½”	34.8	8X8	44.5	43.5	172.5	70	98	50.6 X1/8Acme	73.3	11.6	14	F04-F05
2”	47.5	10X10	52.5	47.5	172.5	76	102	64.1 X1/8Acme	81.1	13.9	14	F04-F05
2 ½”	60.2	10X10	59	47.5	172.5	80	112.5	77.6 X1/8Acme	87.5	12.5	14	F04-F05
3”	72.9	10X10	65.5	47.5	172.5	84	114.5	91.1 X1/8Acme	95.3	11.5	14	F04-F05
4”	97.4	11X11	79	50	172.5	104	128.5	119.2 X1/8Acme	109.7	17.5	17	F04-F05

Lưu ý

Sản phẩm Sanitary single weld single thread butterfly valve with pull handle được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
