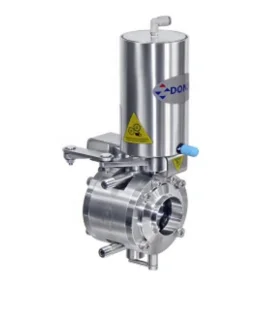

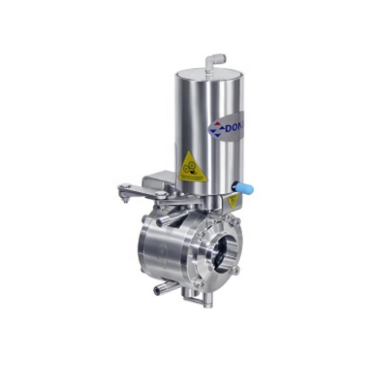

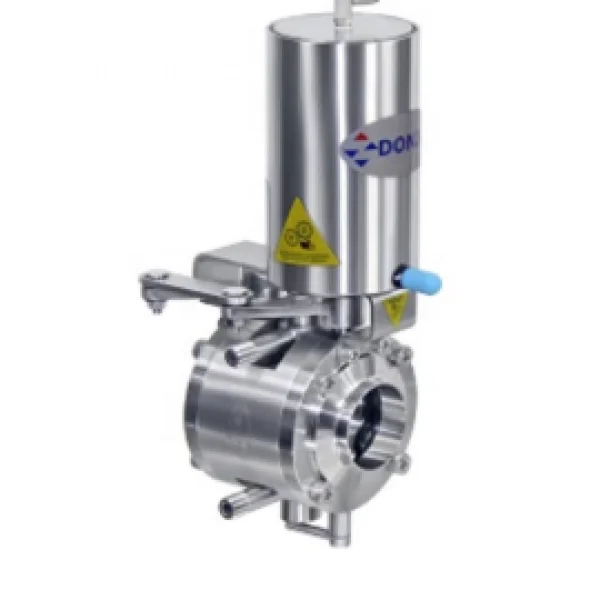

Stainless steel pneumatic double butterfly valve with 316L

Name: Stainless steel pneumatic double butterfly valve with 316L
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Stainless steel pneumatic double butterfly valve with 316L

· Model NO.: New

· FOB Price: USD 311.00-1027.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:5000 piece / Month

· Country of Origin: NINGBO OR SHANGHAI

Product Description

· Place of Origin: CN;ZHE

· Power: Pneumatic

· Temperature of Media: Normal Temperature

· Media: Water

· Structure: Butterfly

· Brand Name: DONJOY

· Model Number: New

· Port Size:DN25-100 1"-4"

Stainless steel pneumatic double butterfly valve with 316L

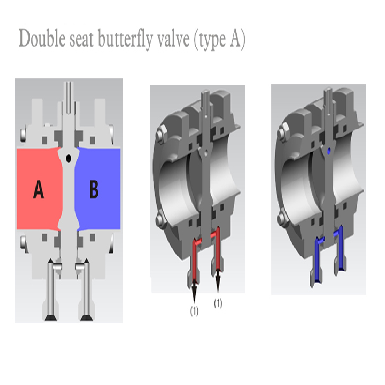

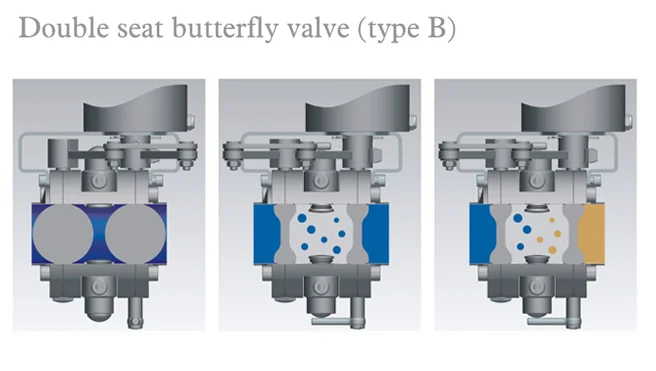

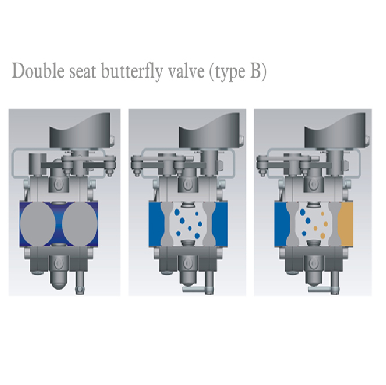

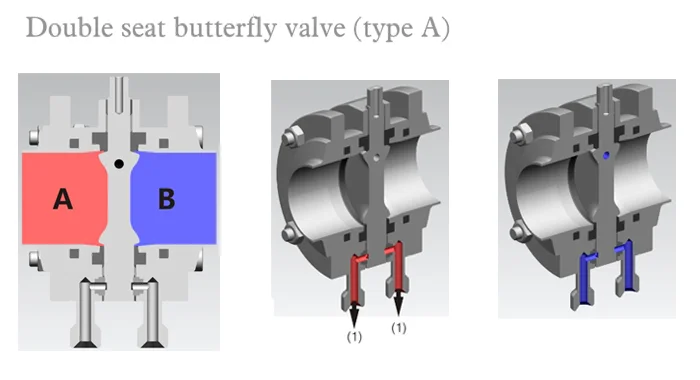

Product structure

stainless-steel-pneumatic-double-butterfly-valve-with-316l-picture-2

stainless-steel-pneumatic-double-butterfly-valve-with-316l-picture-3

Technical Parameters

Max.working pressure	10Bar
Max.Working Temperature	130 degree C
Valve Body Material	SS304/SS316L
Seal Material	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably size	2"-4", DN50-DN100
Availably connection	Clamp / weld / thread/ weld thread/ flange
Availably standard	3A/DIN/SMS/RJT/ISO/IDF
Operated	Manual, Pneumatic, Electric
Control	Sensor, C-TOP, C-top controller(AS-I)
Handle option	pull handle, plastic/SS multi-positon handle
Handle application	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Actuator application	Stainless steel actuator/ Horizontal pneumatic actuator
Certificate	ISO, PED/97/23/EC, FDA.177.2600

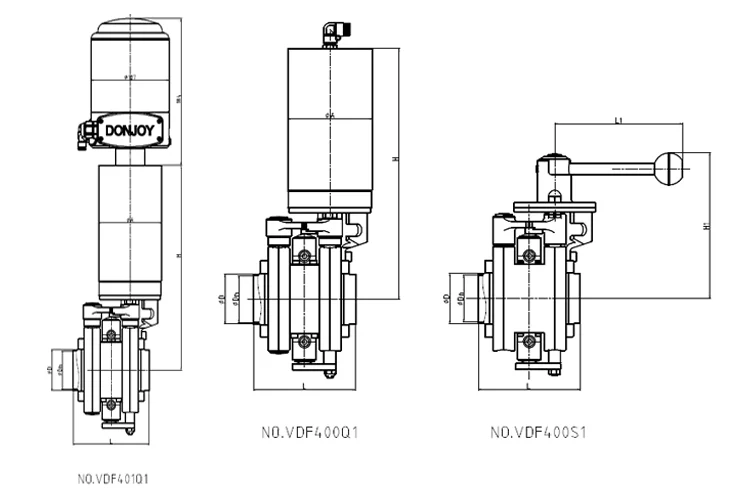

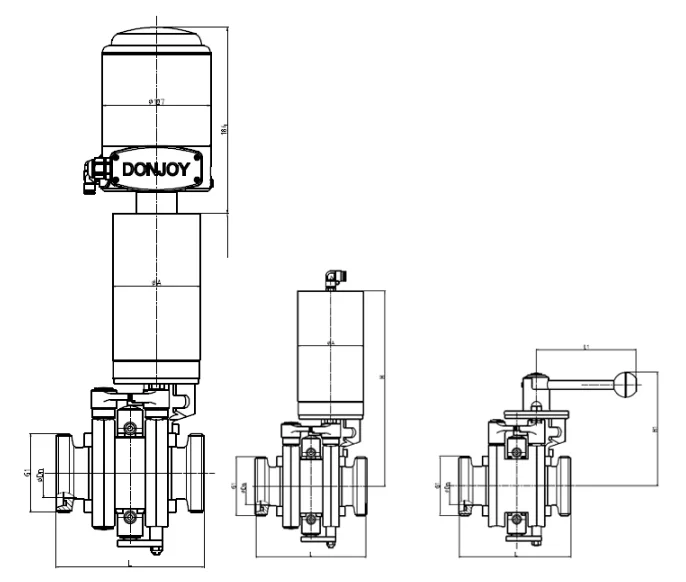

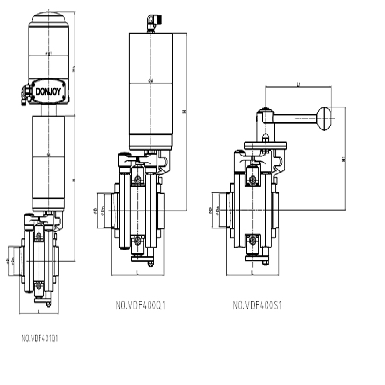

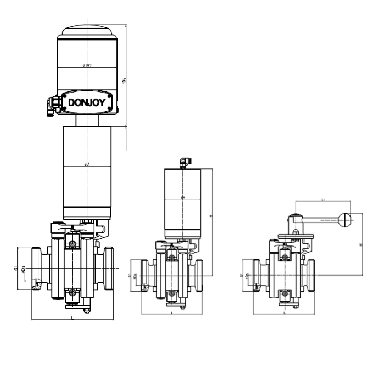

Dimensions

stainless-steel-pneumatic-double-butterfly-valve-with-316l-picture-4

SIZE	Dn	D	L	L1	H	H1	A
1.5”	34.8	38.1	102	133	245	143	86
2”	47.8	50.8	104	133	253	150	86
2.5”	59.5	63.5	126	144	322	168	113
3”	72.2	76.2	140	144	329	174.5	113
4”	97.6	101.6	168	160	345	193	113

SIZE	Dn	D	L	L1	H	H1	A
DN40	37	40	102	133	245	143	86
DN50	49	52	104	133	253	150	86
DN65	66	70	126	144	322	172.5	113
DN80	81	85	144	160	329	183	113
DN100	100	104	168	160	345	193	113

stainless-steel-pneumatic-double-butterfly-valve-with-316l-picture-5

SIZE	Dn	G	H	L1	H	H1	A
DN40	37	Rd64.5x1/6	142	133	245	143	86
DN50	49	Rd78 x1/6	146	133	253	150	86
DN65	66	Rd95 x1/6	172	144	322	172.5	113
DN80	81	Rd110 x1/4	194	160	329	183	113
DN100	100	Rd130 x1/4	224	160	345	193	113
