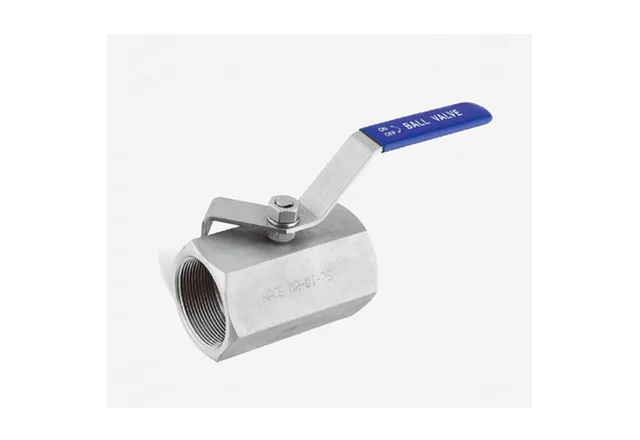

Van bi 1PC VVM-102
1PC Ball Valve-VVM102
|
 |
1PC Ball Valve-VVM102
1PC Ball Valve
Material : 304, 316, 1.4308, CF8, CF8M, WCB
Model : 1PC
Connection : Thread
Medium : Water, Oil, Gas
|
|
FEATURES
|
|
W.P:2000 WOG(PN150)
|
Reduce Port : 1/4" ~ 2"
|
|
Blow-out Proof Stem
|
ASME B16.34 Wall thickness
|
|
Forged body NACE MR0175
|
PED97/23/CE (CE0036) Approved
|
|
Inspection Testing:API598,EN12266
|
Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
|
|
|
MATERIALS LIST
|
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
BODY
|
CF8/CF8M
|
|
2
|
INSCREWED SEAT RETAINER
|
CF8/CF8M
|
|
3
|
BALL
|
CF8/CF8M
|
|
4
|
STEM
|
304/316
|
|
5
|
BALL SEAT
|
RPTFE
|
|
6
|
CAP STEL
|
RPTFE
|
|
7
|
PACKING
|
PTFE
|
|
8
|
HANDLE
|
304
|
|
9
|
HANDLE SLEEVE
|
PVC
|
|
10
|
THRUST WASHER
|
PTFE
|
|
11
|
GLAND
|
304
|
|
12
|
WASHER
|
304
|
|
13
|
HANDLE NUT
|
304
|
|
14
|
STEM NUT
|
304
|
|
|
DIMENSIONS (mm)
|
|
SIZE \ ITEM
|
d
|
H
|
E
|
S
|
L
|
Cv FACTOR
|
|
1/4"
|
5
|
29
|
61
|
175
|
46.5
|
1.0
|
|
3/8"
|
7
|
35
|
80
|
21
|
51
|
2.5
|
|
1/2"
|
9.2
|
66
|
104
|
28.5
|
56
|
5.5
|
|
3/4"
|
12.5
|
69
|
107
|
34.5
|
65
|
10.0
|
|
1"
|
15
|
75
|
118
|
40.5
|
76
|
15.5
|
|
1.1/4"
|
20
|
78
|
146
|
53.5
|
92
|
20.0
|
|
1.1/2"
|
25
|
85
|
148
|
57.5
|
98
|
37.0
|
|
2"
|
32
|
98
|
150
|
73
|
114
|
60
|
|
LƯU Ý:
Sản phẩm Van bi 1PC VVM-102 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
