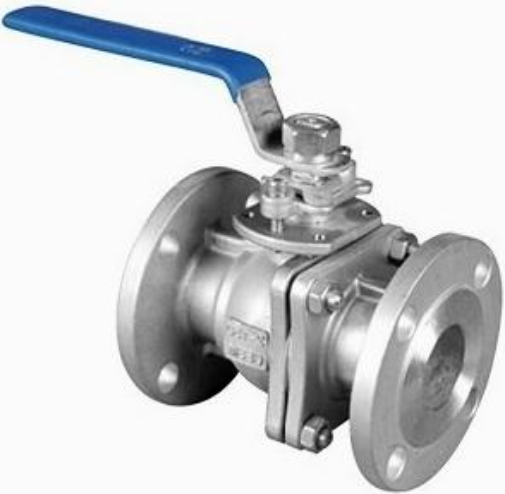

   Industrial Valve - 2PC FLANGED BALL VALVE

150LB

DIMENSION

 Features:

·   Full Port

·   Class 150/ Class 300

·   Fire-Design Upon Requirement Acc.API607

·   Blow-Out Proof Stem

·   Balance Hole in Ball Slot

·   V-Ring Packing for Self-Adjustment

·   ¨&■ Stem For Customer Requirement

·   Design Standard: ASME B16.34

·   Face to Face: ASME B16.10

·   Testing Standard: API 598/SP-110

PRESSURE TESTING

STANDARD PRESSURE

1.6Mpa

SHELL PRESSURE TESTING

2.4Mpa

WATER SEAL TESTING

1.8Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

Φd

L

H

W

ΦC

ΦR

ΦD

N-M

P

A

B

TORQUE N.M

CV

15

15

108

94

125

34.9

60.3

90

4-16

9

42

5

5

3.4

20

20

117

97

125

42.9

69.9

100

4-16

9

42

5

7

7

25

25

127

106

155

50.8

79.4

110

4-16

11

50

5

8

12.4

32

32

140

150

155

63.5

88.9

115

4-16

11

50

5

15

20.3

40

38

165

127

190

73

98.4

125

4-16

14

70

6

22

28.5

50

50

178

137

230

92.1

120.7

150

4-19

14

70

6

25

47.5

65

65

90

158

230

104.8

139.7

180

4-19

17

102

6.5

50

76

80

80

203

178

265

127

152.4

190

4-19

19

102

8

85

108.4

100

100

229

204

290

157.2

190.5

230

4-19

19

102

8

115

198

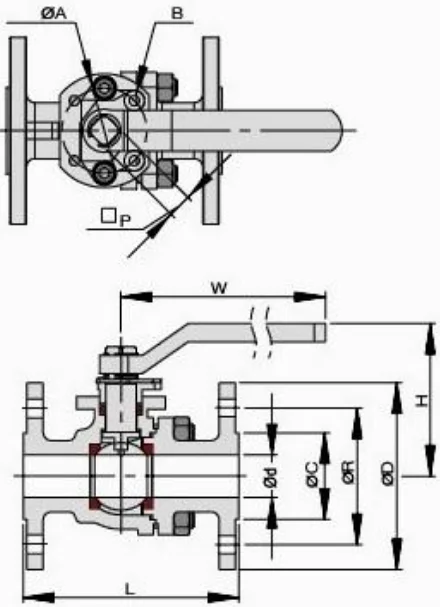

DRAWING

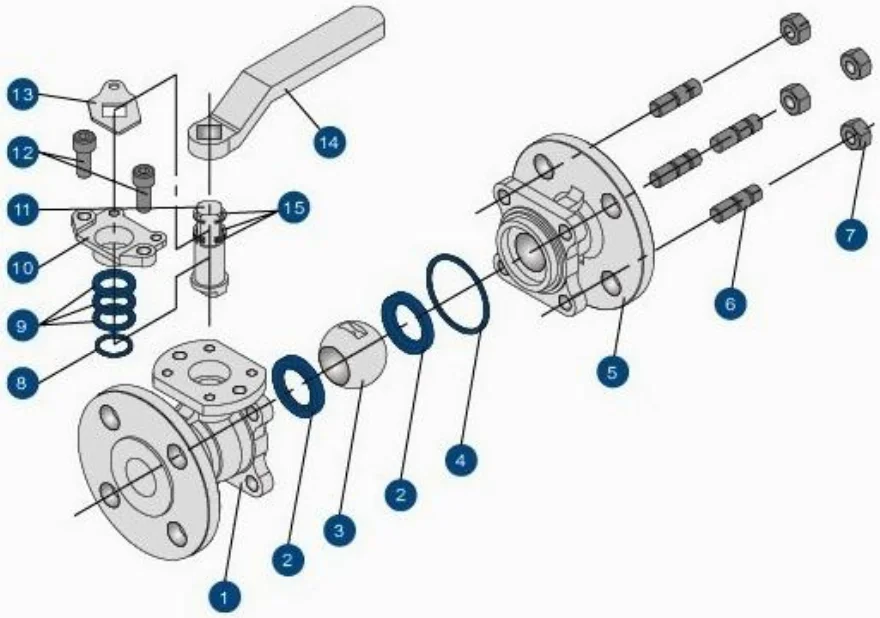

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

CF8M

CF8

WCB

2

BALL SEAT

PTFE

R-PTFE

3

BALL

SUS316

SUS304

4

BODY GASKET

PTFE

5

CAP

CF8M

CF8

WCB

6

BOLT

SUS304

7

NUT

SUS304

8

THRUST WASHER

PTFE

9

V-RING PACKING

PTFE

10

STOP CAP

CF8M

CF8

11

STEM

SUS316

SUS304

12

BOLT

SUS304

13

POSITION WASHER

SUS304

14

HANDLE

CF8

15

LOCKING WASHER

SUS304
