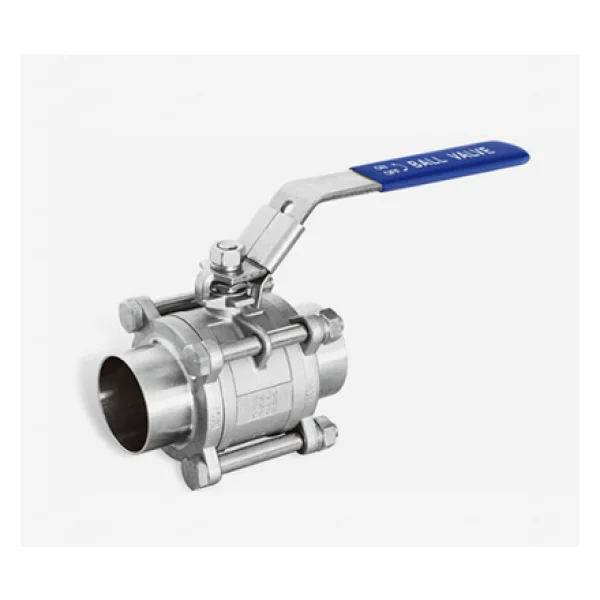

Van bi vi sinh 3PC nối hàn VVM305

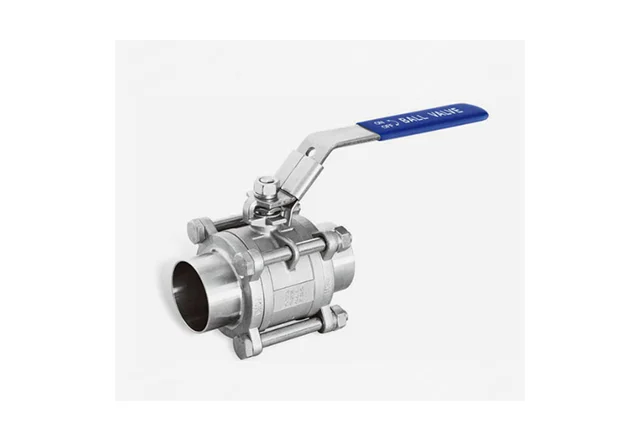

3PC Sanitary Butt Weld Ball Valve-VVM305
|
|
3PC Sanitary Butt Weld Ball Valve-VVM305
3PC Ball Valve
Material : 304, 316, 1.4308, 1.4408, CF8, CF8M
Model : 3PC
Connection : SW
Medium : Water, Oil, Gas
|
FEATURES
|
1000WOG(1/2"-2") / 800WOG(2.1/2"-4")
|
Standard Port
|
Investment Casting
|
Material:CF8/CF8M
|
Ball Seat: With Cavity Filled PTFE
|
Size Rating: 1/2“ - 4"
|
End Connections: Tube End (US/3A)
|
Options: Locking Device
|
|
MATERIALS LIST
|
ITEM
|
DESIGNATION
|
QTY
|
MATERIAL
|
1
|
PLASTIC SLEEVE
|
1
|
PLASTIC
|
2
|
HANDLE
|
1
|
304
|
3
|
GLAND NUT
|
1
|
304
|
4
|
STEM NUT
|
1
|
304
|
5
|
STEM WASHER
|
1
|
304
|
6
|
STEM PACKING
|
1
|
PTFE
|
7
|
THRUST WASHER
|
1
|
PTFE
|
8
|
END ASP
|
1
|
304/316
|
9
|
BOLT
|
4(6)
|
304
|
10
|
NUT
|
4(6)
|
304
|
11
|
SPRING WASHER
|
4(6)
|
304
|
12
|
BODY
|
1
|
304/316
|
13
|
BALL SEAT
|
2
|
RPTFE
|
14
|
BALL
|
1
|
304/316
|
15
|
STEM
|
1
|
304
|
16
|
LOCKING DEVICE
|
1
|
304
|
|

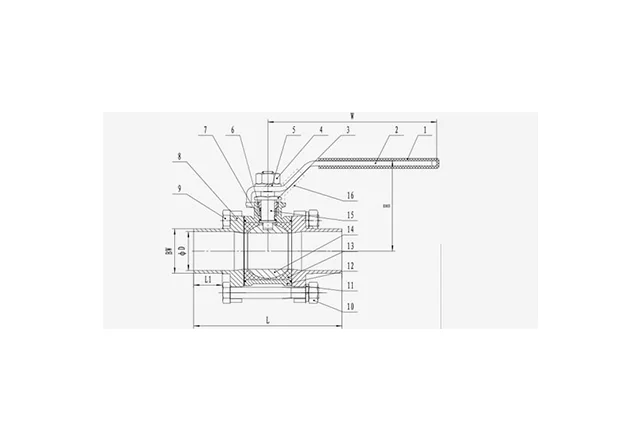

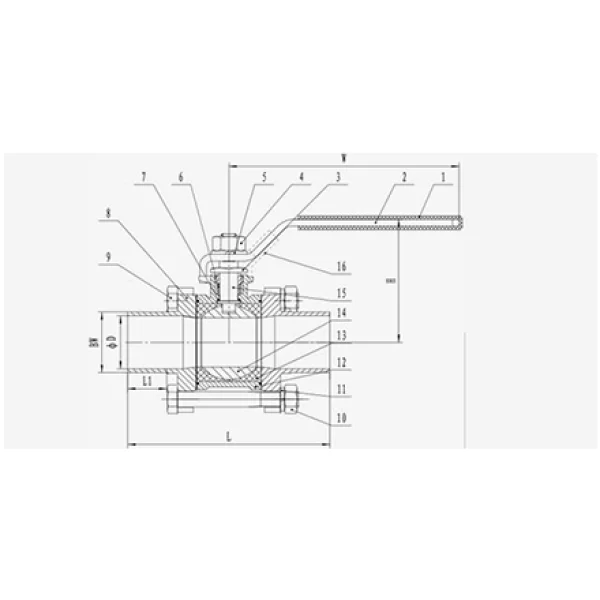

DIMENSIONS (mm)
|
SIZE \ ITEM
|
D
|
L
|
L1
|
H
|
W
|
BW
|
1/2"
|
10.2
|
82.5
|
20
|
55
|
103
|
12.7
|
3/4"
|
15.8
|
87.5
|
20
|
63
|
103
|
19.1
|
1"
|
22.1
|
96
|
20
|
70
|
135
|
31.8
|
1.1/4"
|
28.5
|
104
|
20
|
76
|
135
|
25.4
|
1.1/2"
|
34.8
|
118
|
20
|
89
|
182
|
38.2
|
2"
|
47.5
|
131.7
|
20
|
97
|
182
|
50.8
|
2.1/2"
|
60.2
|
158.5
|
20
|
143
|
260
|
63.4
|
3"
|
72.9
|
178.8
|
20
|
152
|
260
|
76.2
|
4"
|
97.4
|
210.5
|
20
|
187
|
400
|
101.6
|
|
LƯU Ý:
Sản phẩm Van bi vi sinh 3PC nối hàn VVM305 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
