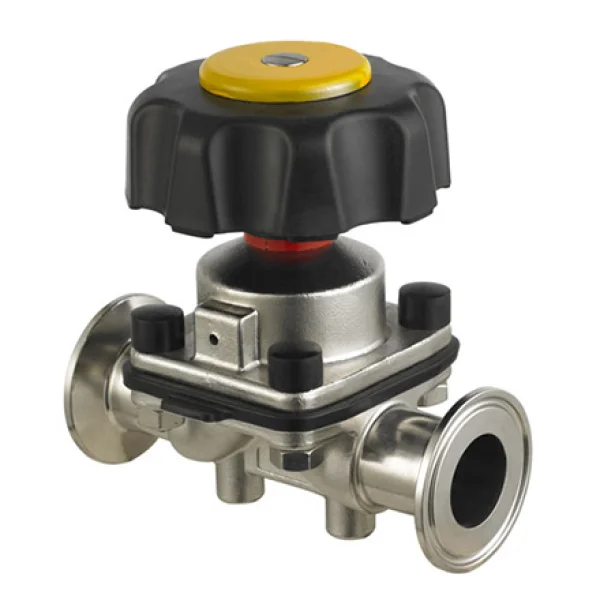

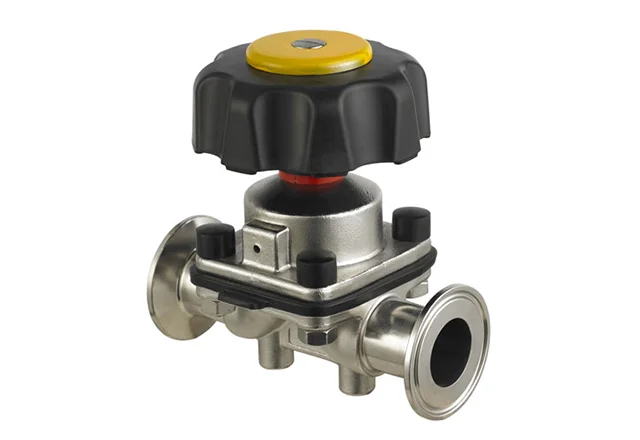

Van màng nối clamp tay vặn

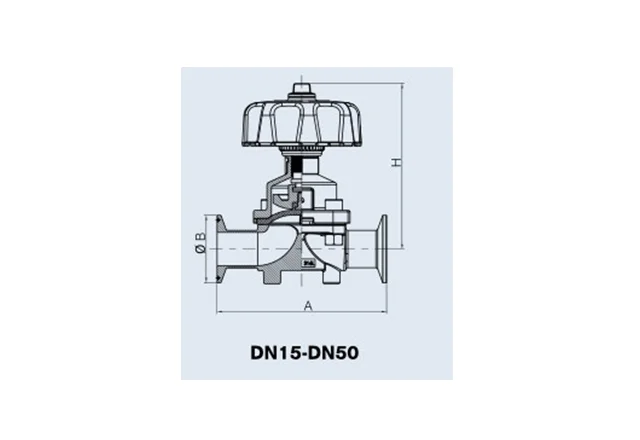

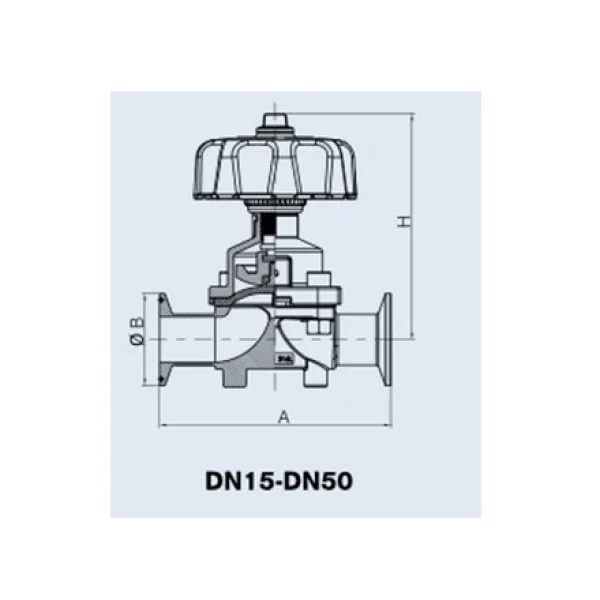

DN

Size

A

B

H

DN6

1/4"

72.0

34

74.5/79.5

DN8

3/5"

72.0

34

74.5/79.5

DN10

1/2"

72.0

34

74.5/79.5

DN15

3/4"

108.0

34

90.5/99.5

DN20

118.0

50.5

111.5/122

DN25

1"

127.0

50.5

111.5/122

DN32

1 1/4"

146.0

50.5

131.0/148.5

DN40

1 1/2"

160.0

50.5

131.0/148.5

DN50

2"

190.0

64

167/190

DN65

2 1/2"

216.0

91

199/228

3A

Size

1/4"

3/8"

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

2 1/2"

B

25.2

25.2

25.2

25.2

50.5

50.5

50.5

64

77.5

SMS/ISO

Size

6.35

9.53

12.7

19

25

32

38

51

63

B

25.2

25.2

25.2

25.2

50.5

50.5

50.5

64

77.5
