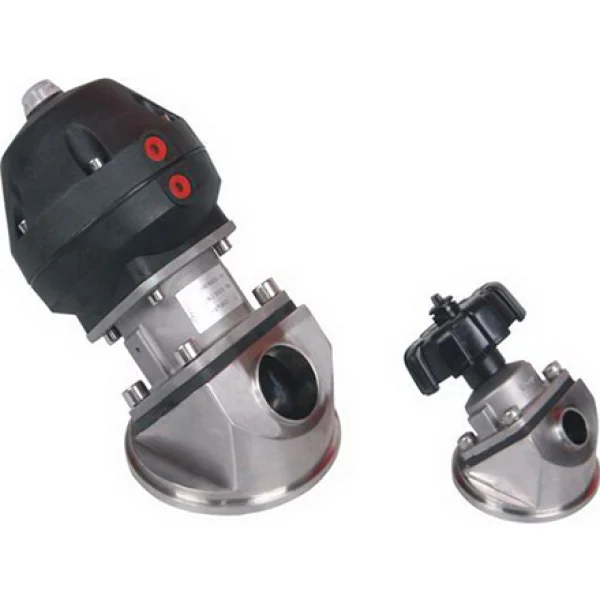

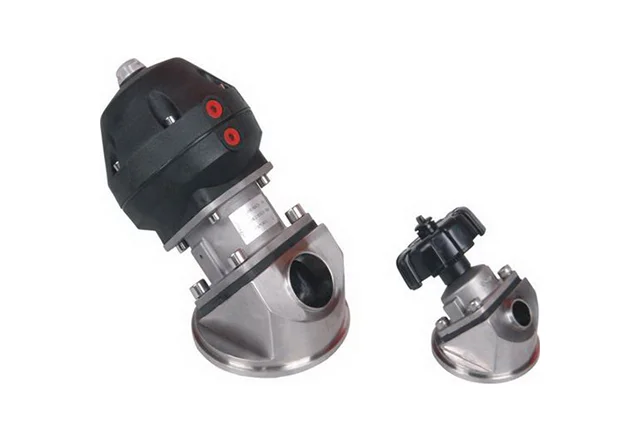

Van màng xả đáy bồn tank điều khiển khí nén

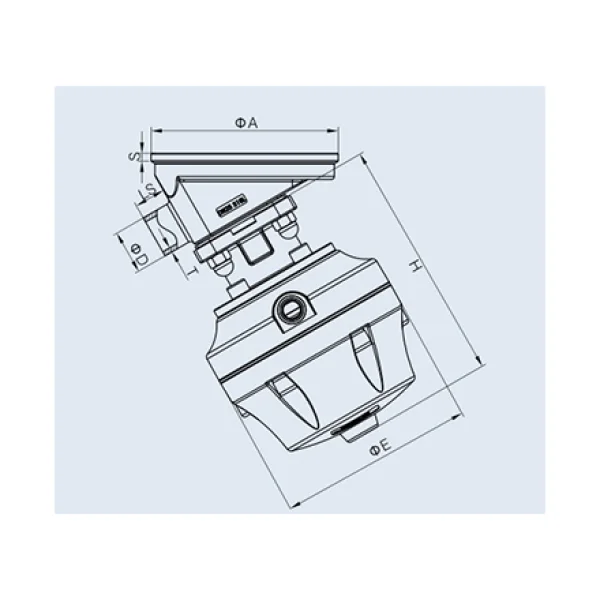

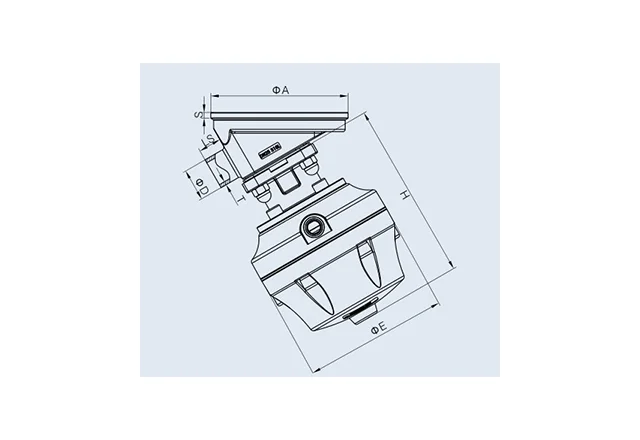

DN

Size

A

S

LS

H

E

D

T

DN15

3/4"

90

6

16

125

90

18

1.5

DN20

90

6

16

125

90

22

1.5

DN25

1"

120

6

20

160

126

28

1.5

DN32

1 1/4"

160

6

20

190

150

34

1.5

DN40

1 1/2"

160

6

20

190

150

40

1.5

DN50

2"

200

6

30

190

150

52

1.5

3A

Size

3/4"

1"

1 1/4"

1 1/2"

2"

D

19.05

25.4

31.8

38.1

50.8

T

1.65

1.65

1.65

1.65

1.65

SMS/ISO

Size

19

25

32

38

51

D

19.05

25.4

31.8

38.1

50.8

T

1.5

1.5

1.5

1.5

1.5
