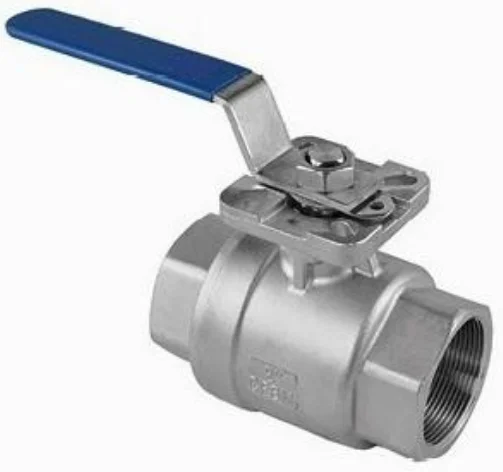

Industrial Valve - 2PC BALL VALVE ISO-DIRECT MOUNTING PAD

1000PSI/PN63

DIMENSION

Features:

·   1000WOG, PN63

·   Full Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   PTFE Packing Sealing

·   Design Standard: ASME B16.34

·   Spring Ball Seat for Self-Adjustment

·   ISO5211 Direct Mounting Pad Top Flange

·   Testing Standard: API 598/SP-110

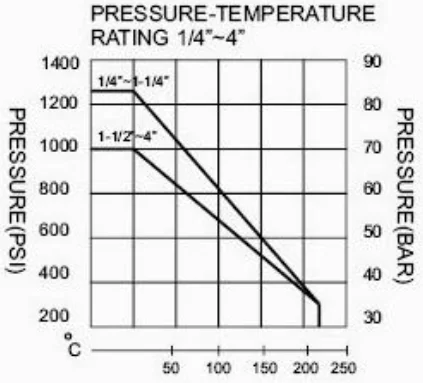

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

W

H

H1

H2

ΦA

ΦB

Φa

Φb

£G

TORQUE N.M

CV

1/4"

50

11.5

110

60

36

8

42

36

6

5.5

9

4

2

3/8"

60

12

110

60

36

8

42

36

6

5.5

9

4

2

1/2"

75

15

110

64

38

8.5

42

36

6

5.5

9

5

3.4

3/4"

80

20

120

80

42

9

42

36

6

5.5

9

7

7.1

1"

90

25

145

93

51.5

11

50

42

7

6

11

8

12.4

1-1/4"

110

32

145

95

56.5

11

50

42

7

6

11

15

20.3

1-1/2"

120

40

160

126

70

14

70

50

9

7

14

22

28.5

2"

140

50

170

129

77.5

15

70

50

9

7

14

25

47.5

2-1/2"

185

65

230

148

95

18

100

70

11

9

17

50

76

3"

205

80

260

152

107

18

100

70

11

9

17

85

108.4

4"

240

100

300

187

125

19

100

70

11

9

19

115

198

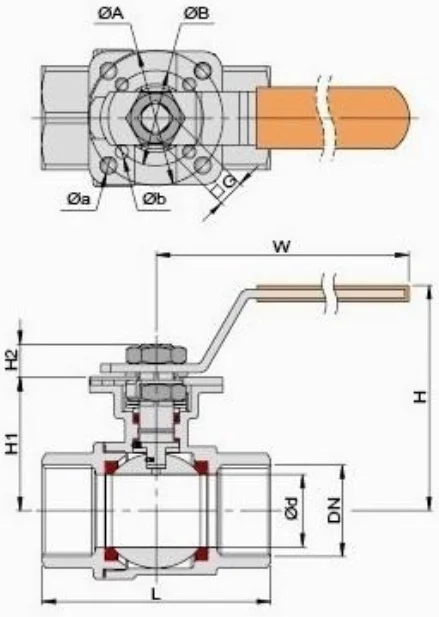

DRAWING

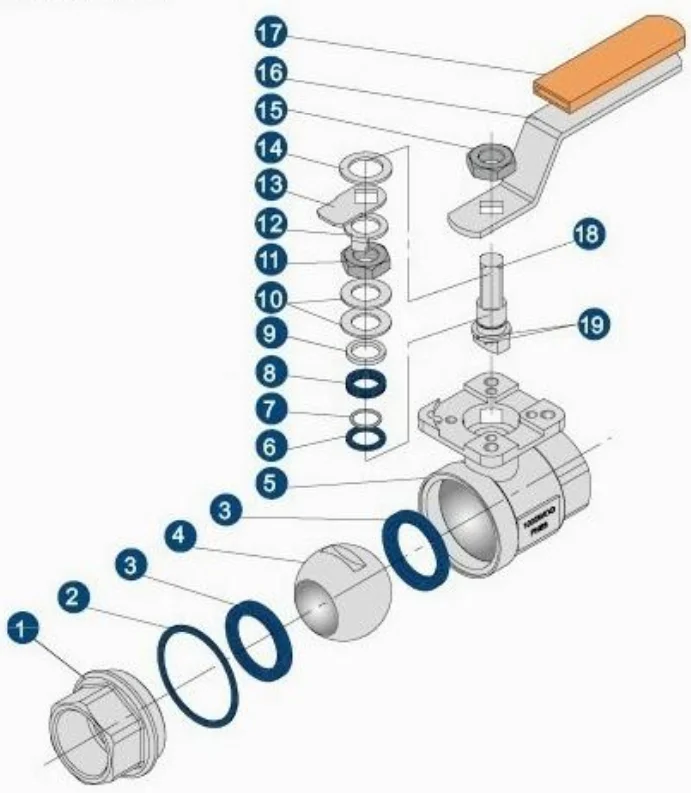

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

CAP

CF8M

CF8

WCB

2

BODY GASKET

PTFE

R-PTFE

3

BALL SEAT

PTFE

R-PTFE

4

BALL

SUS316

SUS304

5

BODY

CF8M

CF8

WCB

6

THRUST WASHER

SUS304

7

O-RING

VITON

8

STEM PACKING

PTFE

9

GLAND

SUS304

10

BELLEVILLE WASHER

SUS304

11

STOP NUT

A194-8

12

STOP WASHER

SUS304

13

LOCKING WASHER

SUS304

14

WASHER

SUS304

15

STEM NUT

A194-8

16

HANDLE

SUS304

17

HANDLE COVER

PLASTIC

18

STEM

SUS316

SUS304

19

ANTI-STATIC DEVICE

SUS304
